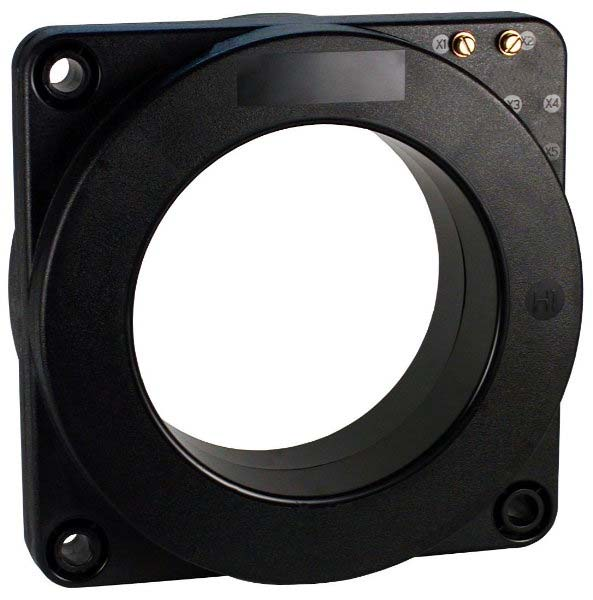

Model 780 4500:5A Ratio CT, C200 Relay Class, 6.5" Window, ITI
APPLICATION: Relaying and metering
FREQUENCY: 50-400 Hz
CONTINUOUS THERMAL CURRENT RATING FACTOR:
- 50:5-1200:5 2.0 at 30°C amb., 1.33 at 55°C amb. and 2000:5
- 1500:5-1600:5 1.5 at 30°C amb., 1.33 at 55°C amb. 2500:5-3500:5
- 4000:5-5000:5 1.0 at 30°C amb.
- 6000:5 0.8 at 30°C amb.
- Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher, and regular nut.
- Excitation data available upon request.
- Approximate weight: 30 lbs.
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 780 |
Input Range | 0-4500AAC |
Input Frequency | 60Hz |
Accuracy | 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
Output | 0-5AAC |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Ratio | 4.500:5A |
CT Relay Class | C200 |
CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
