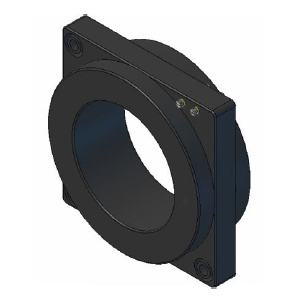

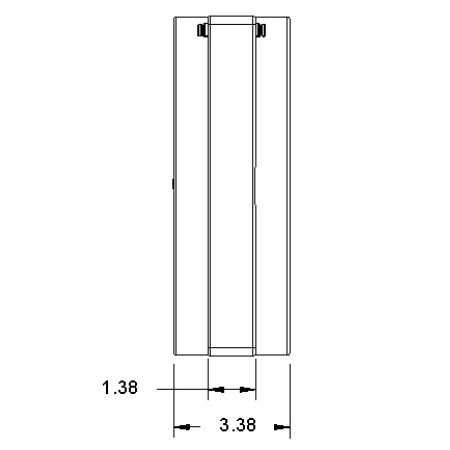

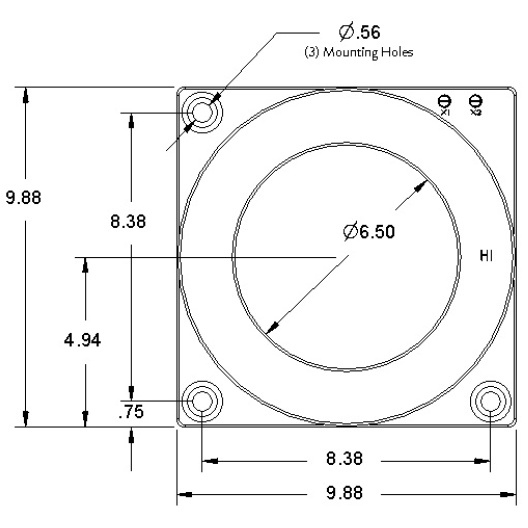

Model 780 1200:5A Ratio CT, C200 Relay Class, 6.5" Window, Electromagnetic Industries

$ 733.11 733.11 USD $ 771.69

Brand
Model
Input Range
Output
CT Window
CT Relay Class
ECCN
Tariff Code
CT Ratio
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
Insulation Level
CT Secondary Winding Resistance

This combination does not exist.

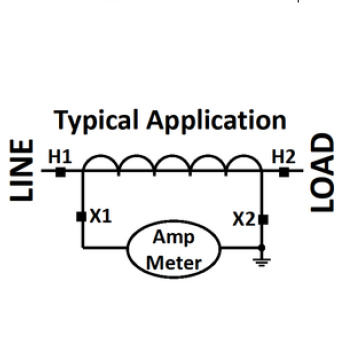

APPLICATION: Relaying and metering

FREQUENCY: 50-400 Hz

CONTINUOUS THERMAL CURRENT RATING FACTOR:

- 50:5-1200:5 2.0 at 30°C amb., 1.33 at 55°C amb. and 2000:5
- 1500:5-1600:5 1.5 at 30°C amb., 1.33 at 55°C amb. 2500:5-3500:5
- 4000:5-5000:5 1.0 at 30°C amb.
- 6000:5 0.8 at 30°C amb.
Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher, and regular nut.
Approximate weight: 30 lbs.

Specifications

Product
Brand	Electromagnetic Industries
Model	780
Input Range	0-1200AAC
Output	0-5AAC
ECCN	EAR99
Tariff Code	8504.31.0000
Input Frequency	60Hz
Accuracy	0.15 B0.1, 0.15 B0.2, 0.15 B0.5, 0.3 B0.9, 0.3 B1.8
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Window	6.50" Diameter
CT Relay Class	C200
CT Ratio	1,200:5A
CT Continuous Thermal Rating Factor	2.0 at 30°C amb., 1.5 at 55°C amb.
CT Secondary Winding Resistance	0.387Ω (387mΩ) @ 75°C
