APPLICATION: With ammeters, wattmeters, and cross current compensation.
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
- Flexible leads are UL 1015, 105°C, CSA approved. #16 AWG, 24" long.
- Non-standard length to be specified.
- Terminals are brass studs No. 8-32 with one flatwasher, lockwasher, and regular nut.
- Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- SFT case styles also available as SFL with leads.
- Approximate weight: 1.5 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 76 |
| Input Range | 0-800AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 12.5VA |
| CT Ratio | 800:5A |

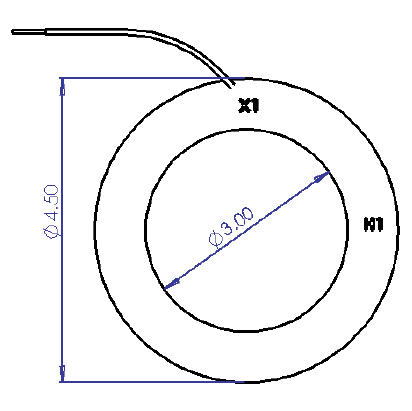

| CT Window | 3.00" Diameter |
