The Model 750 DC Tachometer-Generator embodies a permanent magnet field surrounding a rotating armature. The commutator segments are made from a special non-corrosive alloy which has an exceptionally long life. The brushes are of a self-lubricating material and are carried in a self-aligning holder which equalizes the pressure of both brushes. The armature shaft rotates on ball bearings which under normal operation do not need lubrication for 15,000 hours running time or approximately 3 years, whichever comes first. Maximum recommended speed is 5,000 rpm. Brush life is greatest at the lower speeds.
Approximate torque: 3.0 oz.-in. starting, 4.0 oz.-in. running (1000 RPM).
- Chiefly used on diesel and gas engines where a standard S.A.E. screw type tachometer outlet is available
- Linear voltage output based on RPM
- Dust-proof aluminum alloy housing.
- S.A.E. 7/8" screw type steel mounting with 3/16" drive dog.

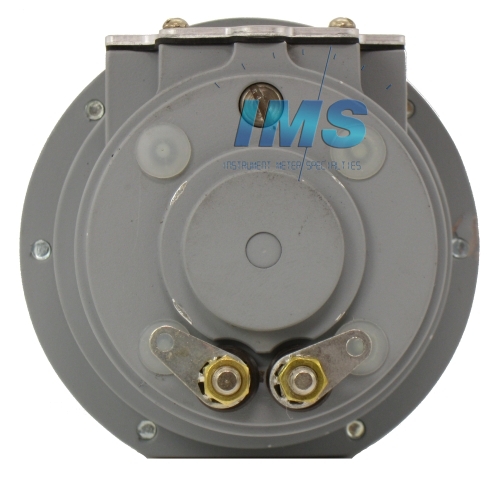

- Two binding posts for electrical connection.
- Voltage Output: 6 Volts per 1000 RPM
- Accuracy: ±1%
- EMF Linearity 1: ±0.15%
- Permissible Current Drain: 50mA
- Maximum RMS Value of AC Ripple: 2%
- Allowable End Play: 0.005" (0.127mm)
- Max Operating Temperature: 250°F (121°C)
- Internal Resistance at 25°C: 20 Ω ±2%
- Number of Brushes: 2 per set
- Brush Composition: Palladium Silver Alloy
- Armature: 12 Bars, 12 Slots
- Insulation: Class 105
- HI-POT Test: 500V for 1 min.
- Bearings: Ball
- Temperature Compensation: 0.1% Per 10°C
- Normal Continuous Speed: 2000 RPM
- Min Top Speed: 100 RPM
- Max Speed: 5000 RPM
- Starting Torque: 3.0 oz-in (216 g-cm)
- Running Torque at 1000 RPM: 4 oz-in (288 g-cm)
- Shaft Diameter: 3/16" (4.76mm)
- Shaft Connection: Direct
- Shaft Length: 0.47" (11.94mm)
- Adjustable Magnetic Shunt Range: ±4%
- Direction of Rotation Effect: ±0.6%
- Mounting: SAE 7/8" Screw
- Enclosure: Dust resistant

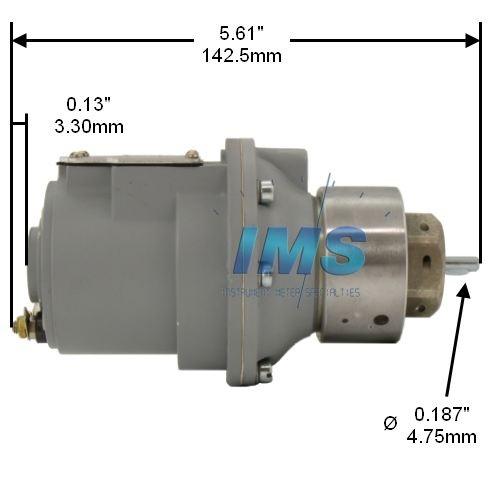

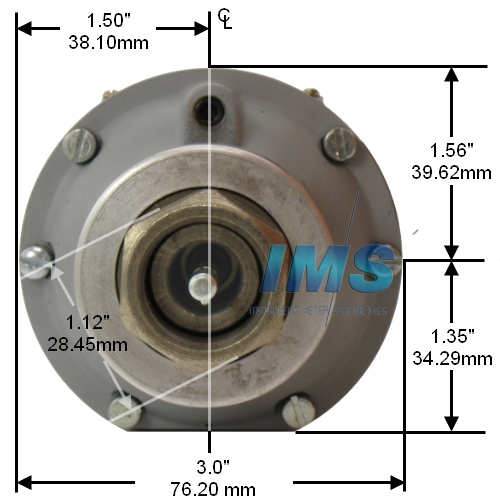

- Measurements LxHxW: 5.61 x 2.91 x 3in (142.5 x 73.9 x 76.2 mm)
- Approximate Weight: 1.8 Lbs (0.82 kg)
