Model 750 Type W 6VDC / 1000RPM Tachometer Generator, Base Mounting, Splash-Proof, Westcon

6,164.41 6164.41 USD 6,164.41


  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN

This combination does not exist.

The Model 750 DC Tachometer-Generator embodies a permanent magnet field surrounding a rotating armature. The commutator segments are made from a special non-corrosive alloy, which has an exceptionally long life. The brushes are of a self-lubricating material and are carried in a self-aligning holder, which equalizes the pressure of both brushes. The armature shaft rotates on ball bearings which under normal operation do not need lubrication for 15,000 hours running time or approximately 3 years, whichever comes first. Maximum recommended speed is 5,000 rpm. Brush life is greatest at the lower speeds.

Approximate torque: 2.0 oz.-in. starting, 2.0 oz.-in. running (1000 RPM).

  • Designed for locations which are subject to mechanical abuse or water spray, such as paper mills and chemical plants where cleaning up by hose is frequent. Housing is gasket sealed.
  • Rigid, heavy-duty cast-iron base mounting type housing
  • Linear voltage output based on RPM

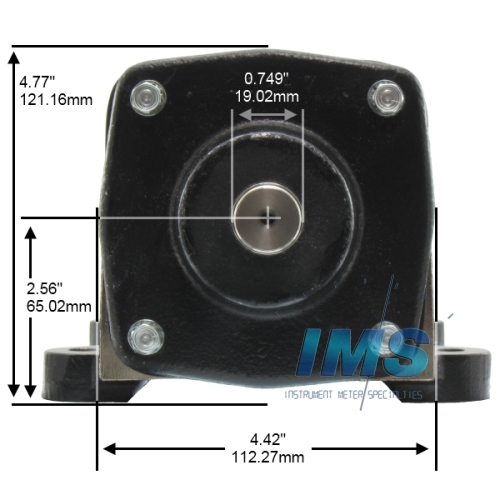

  • 3/4" diameter shaft, supported by heavy-duty ball bearings

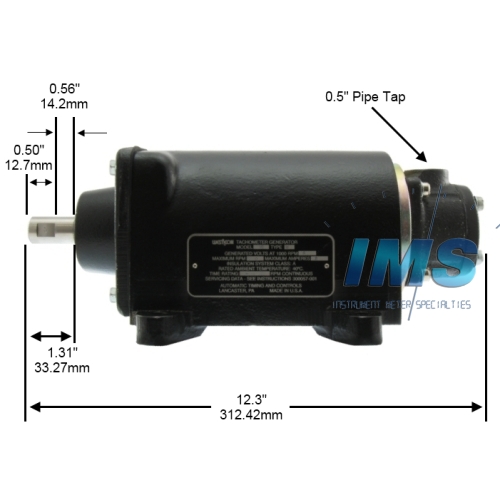

  • Includes conduit junction box with 1/2" N.P.T. opening suitable for flexible conduit, mountable in anyone of four positions.
  • Sealed for water wash down area's

⚠ WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm, and Cumene and/or Ethylbenzene which are known to the Stat of California to cause cancer. For more information go to www.P65Warnings.ca.gov


Brand Westcon
Model 750
Input Range 0-5000RPM
Output 0-30VDC
Tariff Code 9029.20.5000
