MODEL 6RL
CURRENT TRANSFORMERS
TE Connectivity’s (TE) Crompton Instruments range of ANSI current transformers provide cost-effective and accurate measurement of the primary current. The extensive portfolio measures a wide range of primary currents with apertures to suit most conductor sizes.

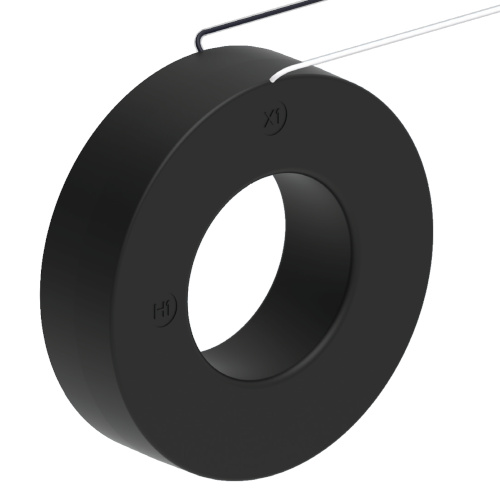

The Model 6RL current transformer is available in ring styles:
– RL: Ring Leaded (24 inches long).
Key Features
- Frequency 50-400 Hz
- Insulation level 600 Volts, 10 kV BIL full wave

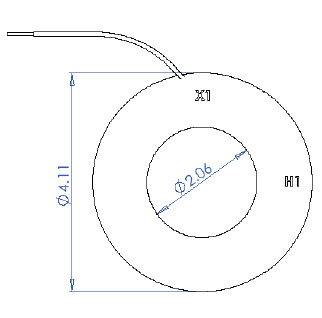

- Window diameter 2.06”
- Approximate weight of 1.2 lbs
- Flexible leads are UL 1015 105 C, CSA approved #16 AWG, 24” long
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Product | |
|---|---|
| Brand | Crompton |
| Model | 6 |
| Input Range | 0-400AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.3900 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 15.0VA |
| CT Ratio | 400:5A |
| CT Window | 2.06" Diameter |
