685-122 ITI

https://www.metersales.com/web/image/product.template/32363/image_1920?unique=ebb86d7

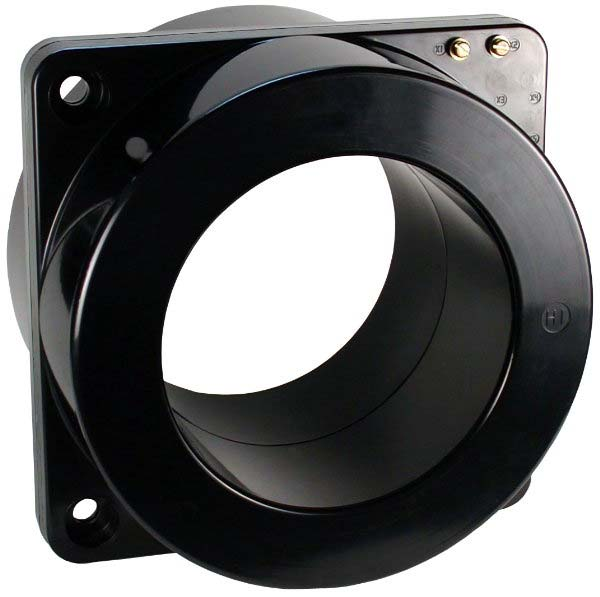

Model 685 1200:5A Ratio CT, C400 Relay Class, 7.02" Window, ITI

$ 1,748.74 1748.74 USD $ 1,748.74

$ 1,748.74

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

APPLICATION: Relaying and Metering.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600V, BIL 10 kV full wave.
CONTINUOUS THERMAL CURRENT RATING FACTOR:

    • 50:5 thru 2000:5: 2.0 at 30°C. amb., 1.5 at 55°C. amb.
    • 2500:5 thru 4000:5: 1.33 at 30C. amb.,1.0 at 55°C. amb.


  • Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher, accessible from either side.
  • Approximate weight 64 lbs.

Specifications

Product
Brand Instrument Transformers Inc
Model 638
Input Range 0-1200AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 1.5 at 55°C amb.
CT Ratio 1,200:5A
CT Relay Class C400
CT Secondary Winding Resistance 0.708Ω (708mΩ) @ 75°C

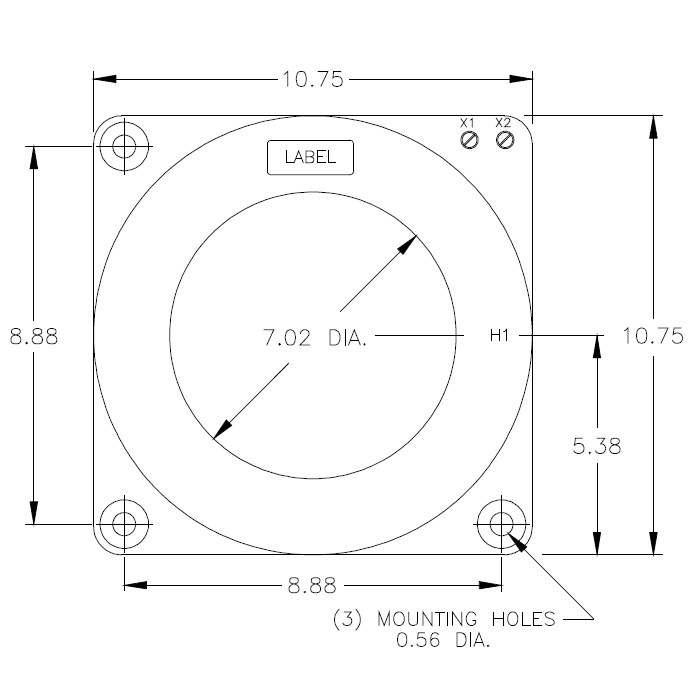

CT Window 7.02" Diameter
