617T-801 EI

https://www.metersales.com/web/image/product.template/27682/image_1920?unique=9d37229

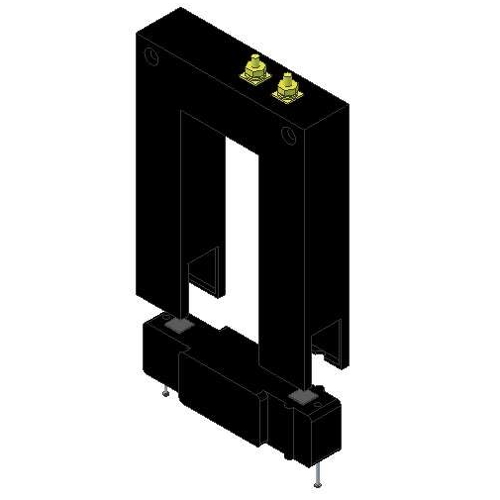

Model 617 800:5A Ratio CT, Split Core, 5VA, 2" x 3.5" Window, Electromagnetic Industries

$ 321.76 321.76 USD $ 338.69

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Burden VA Max.
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Window

This combination does not exist.

Contact Us

​

Share

The Model 617 has the capability to be assembled around existing bus bars or conductors.

Application:

Used for energy management systems and instrumentation.

Frequency:

50-400 Hz

Insulation Level:

600 Volts, 10Kv BIL Full Wave

Standards:

CSA 66.1-06, CSA 66.2-06, and UL 506

  • Flexible leads available for all case configurations upon special request.
  • Terminals are brass. Stud and Female options w/ hardware available upon special request. See Datasheet
  • Continuous Thermal Current Rating Factor: 1.33 @ 30 Deg. C. Amb.: 1.0 @55 Deg. C. Amb
  • Approximate weight: 1.2 lbs

Specifications

Product
Brand Electromagnetic Industries
Model 617
Input Range 0-800AAC
Input Frequency 60Hz
Accuracy 1% Class, 1.2 B0.1, 1.2 B0.2, 2.4 B0.5
Output 0-5AAC
Tariff Code 8504.31.0000
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Burden VA Max. 5.0VA
CT Continuous Thermal Rating Factor 1.33 at 30°C amb., 1.0 at 55°C amb.
CT Ratio 800:5A
CT Window 2.00" x 3.50"
