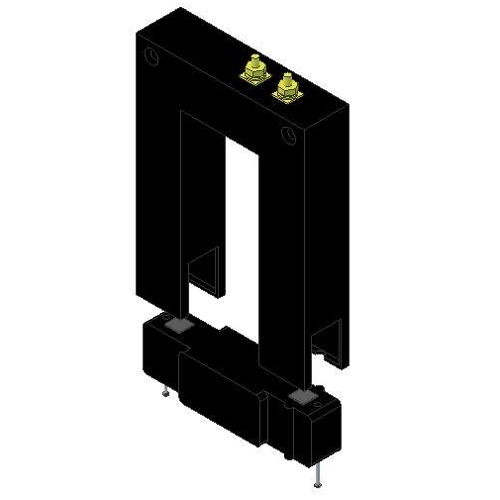

The Model 617 has the capability to be assembled around existing bus bars or conductors.
Application:
Used for energy management systems and instrumentation.
Frequency:
50-400 Hz
Insulation Level:
600 Volts, 10Kv BIL Full Wave
Standards:
CSA 66.1-06, CSA 66.2-06, and UL 506
- Flexible leads available for all case configurations upon special request.
- Terminals are brass. Stud and Female options w/ hardware available upon special request. See Datasheet
- Continuous Thermal Current Rating Factor: 1.33 @ 30 Deg. C. Amb.: 1.0 @55 Deg. C. Amb
- Approximate weight: 1.2 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 617 |
| Input Range | 0-600AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 2.4 B0.1, 2.4 B0.2 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.5VA |
| CT Continuous Thermal Rating Factor | 1.33 at 30°C amb., 1.0 at 55°C amb. |
| CT Ratio | 600:5A |

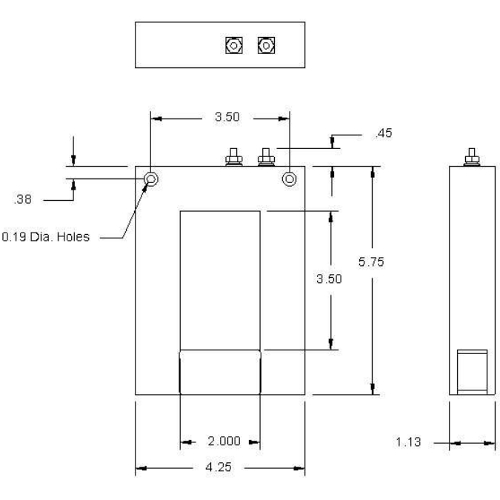

| CT Window | 2.00" x 3.50" |
