617T-501 EI

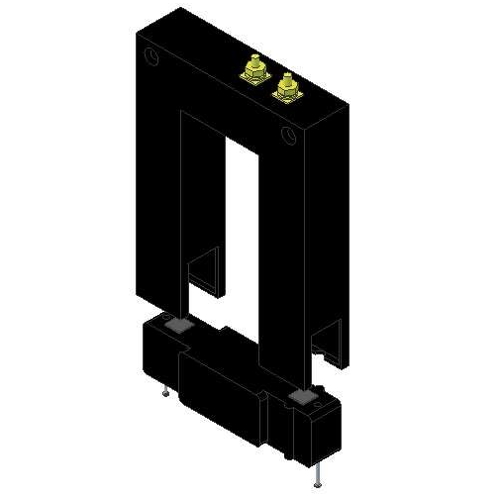

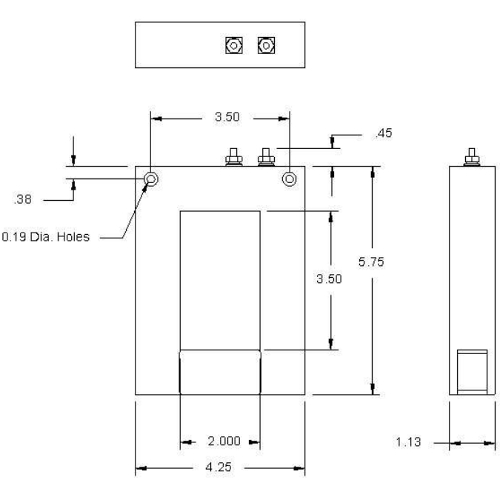

Model 617 500:5A Ratio CT, Split Core, Window 2in x 3.5in, Electromagnetic Industries

$ 208.27 208.27 USD $ 208.27

$ 219.23

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • Burden VA Max.
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

The Model 617 has the capability to be assembled around existing bus bars or conductors.

Application:

Used for energy management systems and instrumentation.

Frequency:

50-400 Hz

Insulation Level:

600 Volts, 10Kv BIL Full Wave

Standards:

CSA 66.1-06, CSA 66.2-06, and UL 506

  • Flexible leads available for all case configurations upon special request.
  • Terminals are brass. Stud and Female options w/ hardware available upon special request. See Datasheet
  • Continuous Thermal Current Rating Factor: 1.33 @ 30 Deg. C. Amb.: 1.0 @55 Deg. C. Amb
  • Approximate weight: 1.2 lbs

Specifications

Brand Electromagnetic Industries
Model 617
Input Range 0-500AAC
Input Frequency 60Hz
Accuracy 1% Class, 2.4 B0.1, 4.8 B0.2
Output 0-5AAC
CT Ratio 500:5A
CT Continuous Thermal Rating Factor 1.33 at 30°C amb., 1.0 at 55°C amb.
Burden VA Max. 2.0VA
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.0000
ECCN EAR99
