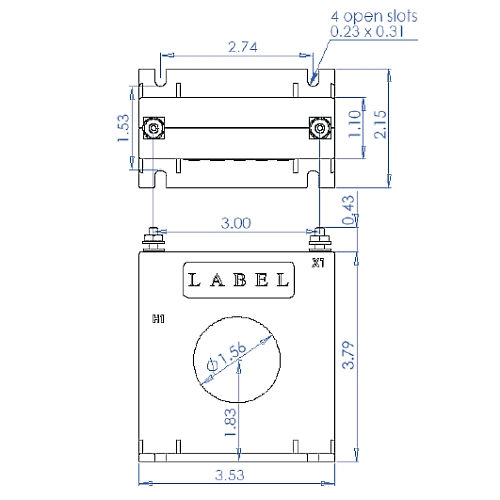

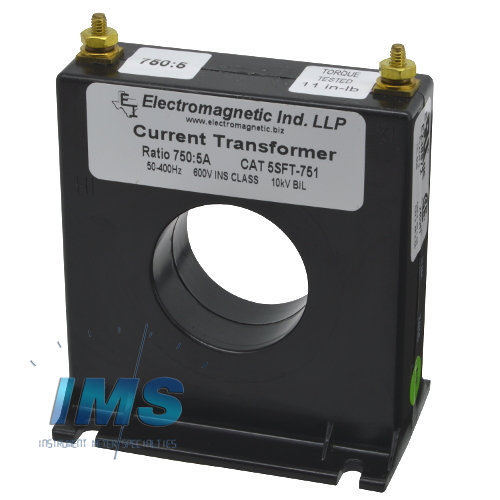

Model 5SFT (1.56 inch window diameter and a square case with molded feet and terminals)
- Application: Used with ammeters, wattmeters, and cross current compensation.
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are torque tested to 11 inch-lb.
|CT Window||1.56" Diameter|
