5SFT-501 EI

Model 5SFT 500:5A Ratio CT, Window 1.56", Electromagnetic Industries

42.00 42.0 USD 42.00

44.21

  • Brand
  • CT Window
  • Input Range
  • Model
  • Output
  • Tariff Code
  • ECCN

This combination does not exist.

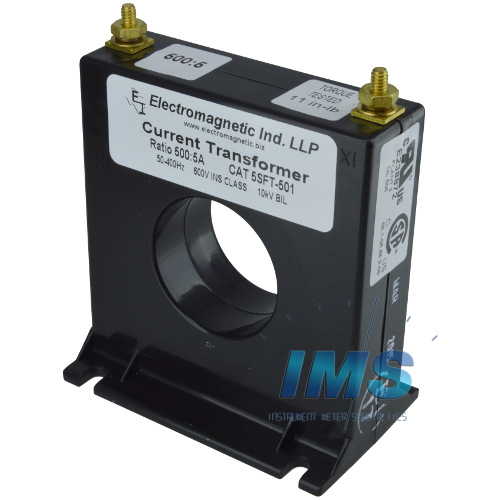

Model 5SFT (1.56 inch window diameter and a square case with molded feet and terminals)

  • Application: Used with ammeters, wattmeters, and cross current compensation.
  • Frequency: 50 - 400Hz
  • Insulation Level: 600 Volts, 10kv BIL Full Wave
  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are torque tested to 11 inch-lb.

Specifications

Brand Electromagnetic Industries
CT Window 1.56" Diameter
Input Range 0-500AAC
Model 5
Output 0-5AAC
Tariff Code 8504.31.0000
ECCN EAR99
