5SFT-122 EI

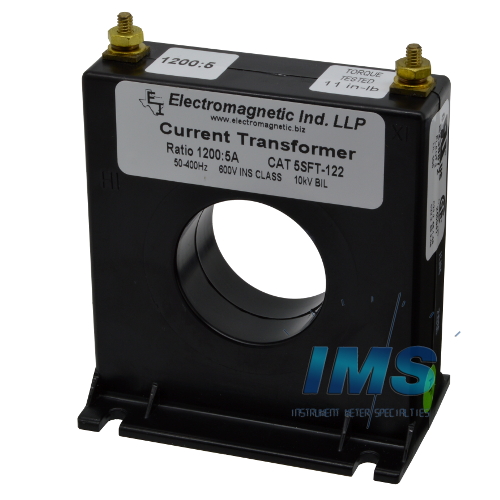

Model 5SFT 1200:5A Ratio CT, 30VA, 1.56" Window, Electromagnetic Industries
Model 5SFT (1.56 inch window diameter and a square case with molded feet and terminals)
- Application: Used with ammeters, wattmeters, and cross current compensation.
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are torque tested to 11 inch-lb.
Specifications
Product | |
---|---|
Brand | Electromagnetic Industries |
Model | 5 |
Input Range | 0-1200AAC |
Input Frequency | 60Hz |
Accuracy | 1% Class |
Output | 0-5AAC |
Tariff Code | 8504.31.0000 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Burden VA Max. | 30.0VA |
CT Ratio | 1,200:5A |
CT Window | 1.56" Diameter |
