5RL-751 EI

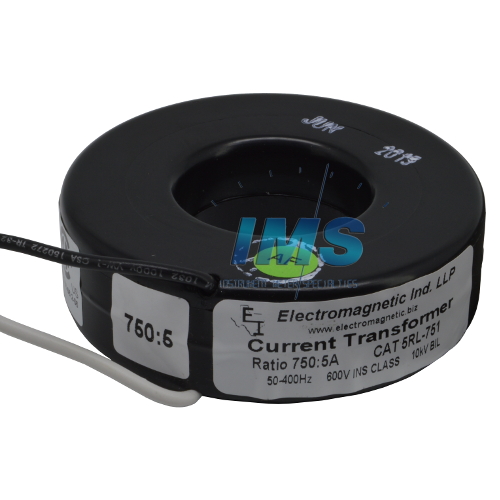

Model 5RL 750:5A Ratio CT, 25VA, 1.56" Window, Electromagnetic Industries

116.06 116.06 USD 122.17

122.17

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Output
  • CT Ratio
  • CT Window
  • Burden VA Max.
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

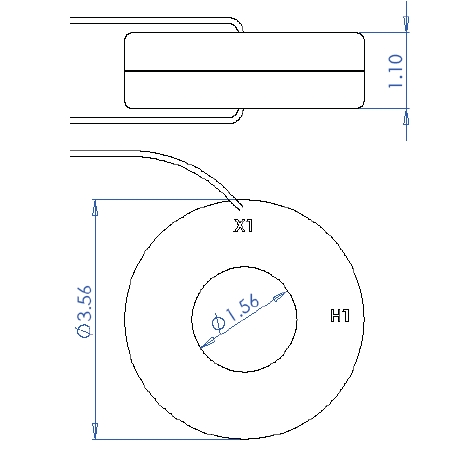

Model 5RL (1.56 inch window diameter and a thin round case with 24 inch leads)

  • Application: Used with ammeters, wattmeters, and cross current compensation.
  • Frequency: 50 - 400Hz
  • Insulation Level: 600 Volts, 10kv BIL Full Wave
  • Flexible leads are UL 1015 105 °C, C.S.A. approved #16 AWG, 24 inch long standard length. Non-standard lengths can be quoted upon request.

Specifications

Brand Electromagnetic Industries
Model 5
Input Range 0-750AAC
Input Frequency 60Hz
Accuracy 1% Class
Output 0-5AAC
CT Ratio 750:5A
CT Window 1.56" Diameter
Burden VA Max. 25.0VA
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.0000
ECCN EAR99
