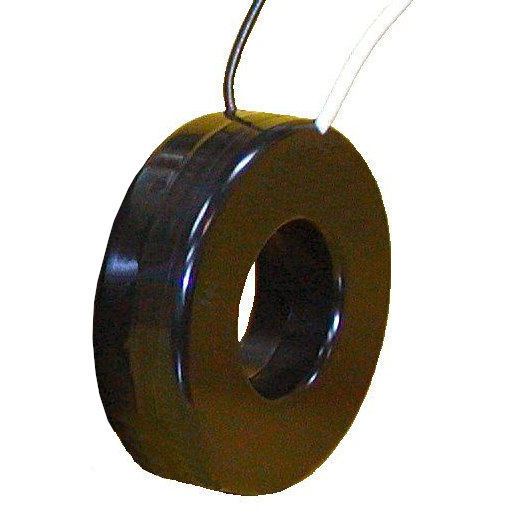

APPLICATION: With ammeters, wattmeters, and cross current compensation.
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave

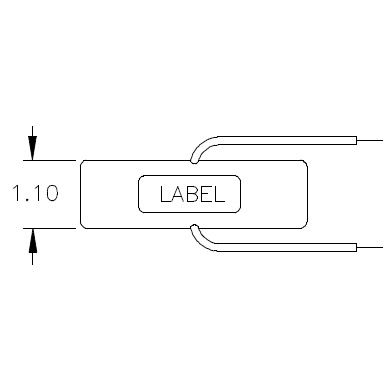

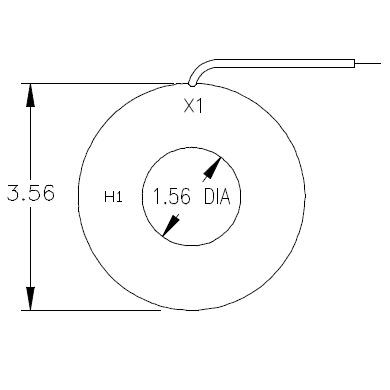

- Terminals are brass studs No. 8-32 with one flatwasher, lockwasher, and regular nut.
- Flexible leads are UL 1015, 105°C, CSA approved. #16 AWG, 24" long.
- Non-standard length to be specified.
- SHT and SHF case styles also available as SHL and SFL leads.
- Mounting bracket 0221B00180 when required for Model 5SHT.
- Approximate weight 1 lb
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 5 |
| Input Range | 0-500AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-1AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 10.0VA |
| CT Ratio | 500:1A |
