5RL-101 EI

Model 5RL 100:5A Ratio CT, Window 1.56", Electromagnetic Industries

54.91 54.910000000000004 USD 54.91

57.80

  • Brand
  • Model
  • Output
  • Tariff Code
  • Input Range
  • CT Window
  • ECCN

This combination does not exist.

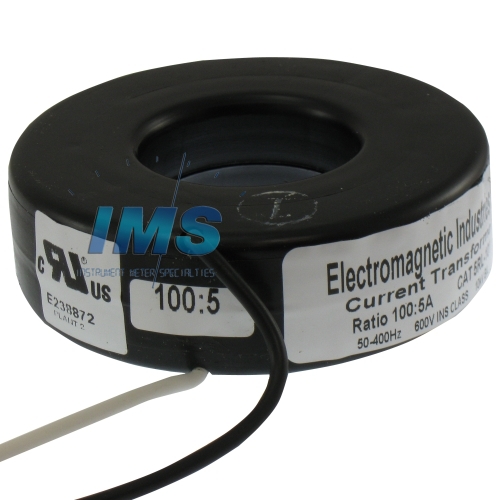

Model 5RL (1.56 inch window diameter and a thin round case with 24 inch leads)

  • Application: Used with ammeters, wattmeters, and cross current compensation.
  • Frequency: 50 - 400Hz
  • Insulation Level: 600 Volts, 10kv BIL Full Wave
  • Flexible leads are UL 1015 105 °C, C.S.A. approved #16 AWG, 24 inch long standard length. Non-standard lengths can be quoted upon request.

Specifications

Brand Electromagnetic Industries
Model 5
Output 0-5AAC
Tariff Code 8504.31.0000
Input Range 0-100AAC
CT Window 1.56" Diameter
ECCN EAR99
