Model 5ARL 300:5A Ratio CT, 15VA, 1.56" Window, Electromagnetic Industries

$ 129.26 129.26 USD $ 136.06

$ 136.06

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Burden VA Max.
CT Ratio
CT Secondary Winding Resistance
CT Window
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor

This combination does not exist.

Model 5ARL

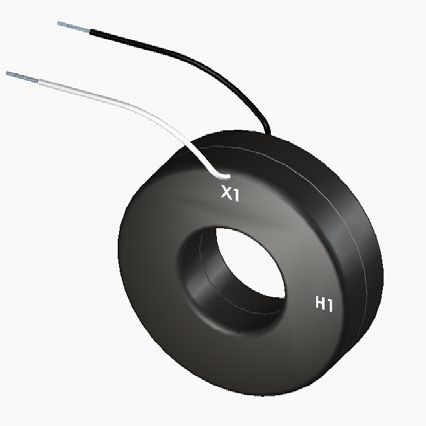

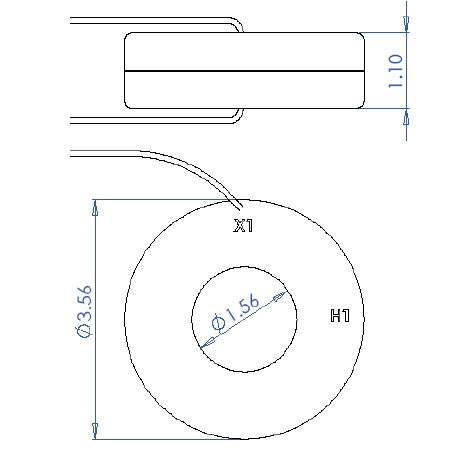

(1.56 inch window diameter and a thin round case with 24 inch leads)

Application: Used with ammeters, wattmeters, and cross current compensation.
Frequency: 50 - 400Hz
Insulation Level: 600 Volts, 10kv BIL Full Wave
Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
Flexible leads are UL 1015 105 °C, C.S.A. approved #16 AWG, 24 inch long standard length. Non-standard lengths can be quoted upon request.
Approximate weight: 0.5 lbs.

Specifications

Product
Brand	Electromagnetic Industries
Model	5A
Input Range	0-300AAC
Input Frequency	60Hz
Accuracy	1% Class, 0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 1.2 B0.9, 2.4 B1.8
Output	0-5AAC
Tariff Code	8504.31.0000
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Burden VA Max.	15.0VA
CT Ratio	300:5A
CT Secondary Winding Resistance	0.040Ω (40mΩ) @ 75°C
CT Window	1.56" Diameter
CT Continuous Thermal Rating Factor	2.0 at 30°C amb., 1.5 at 55°C amb.
