APPLICATION: Relaying
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
CONTINUOUS THERMAL CURRENT RATING FACTOR: 2.0 at 30°C amb., 2.0 at 55°C amb.
- Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
- Excitation data available upon request.
- Approximate weight: 150 lbs
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 593 |
| Input Range | 0-200AAC |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 2.0 at 30°C amb., 2.0 at 55°C amb. |
| CT Ratio | 200:5A |
| CT Relay Class | C50 |

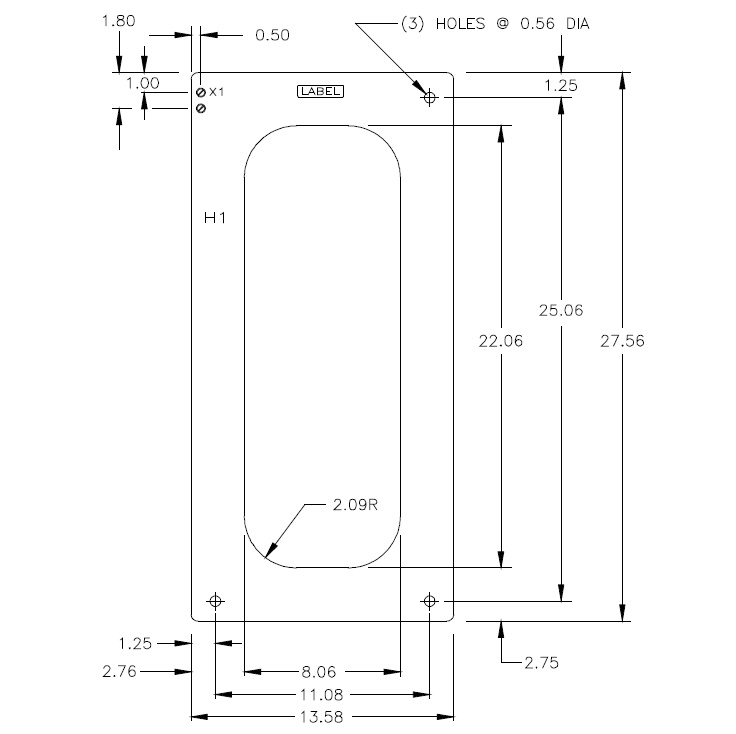

| CT Window | 8.06" x 22.06" |
