592-500 ITI

592-500 ITI

https://www.metersales.com/web/image/product.template/71806/image_1920?unique=9d37229

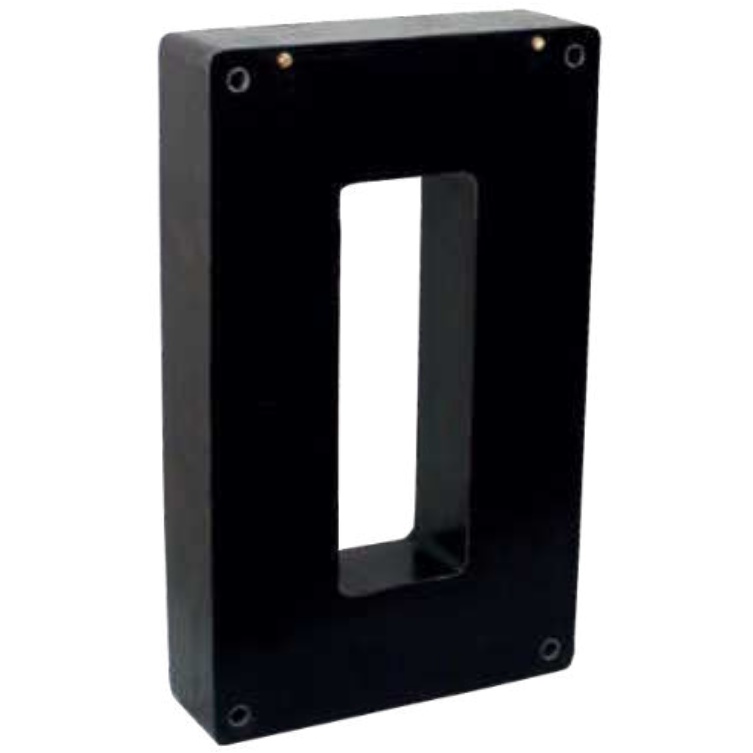

Model 592 50:5A Ratio CT, C15 Relay Class, 5" x 14" Window, ITI

$ 5,117.72 5117.72 USD $ 5,117.72

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

Share

  • Application: Relaying
  • Frequency: 50-400Hz
  • Insulation Level: 600 Volts, 1-kV BIL full wave
  • Terminals are brass screws No. 10-32 with one flatwasher and lockwasher
  • Approximate Weight: 150 Lbs.

Specifications

Product
Brand Instrument Transformers Inc
Model 592
Input Range 0-50AAC
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 1.5 at 55°C amb.
CT Ratio 50:5A
CT Relay Class C15
CT Secondary Winding Resistance 0.014Ω (14mΩ) @ 75°C
CT Window 5.00" x 14.00" Window
