58RBL-201 EI

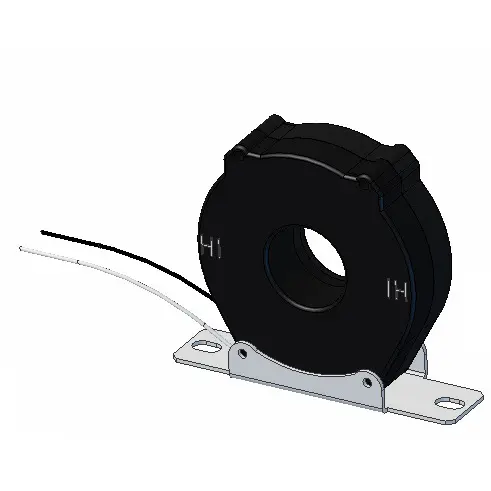

Model 58RBL 200:5A Ratio CT, 12.5VA, 1.25" Window, Electromagnetic Industries
CURRENT TRANSFORMERS

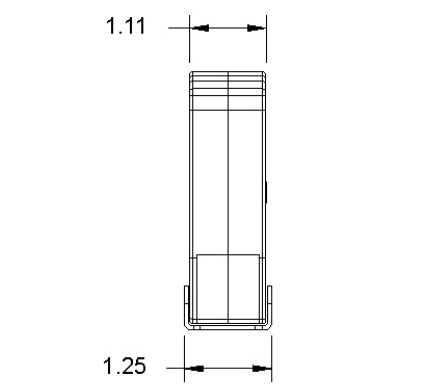

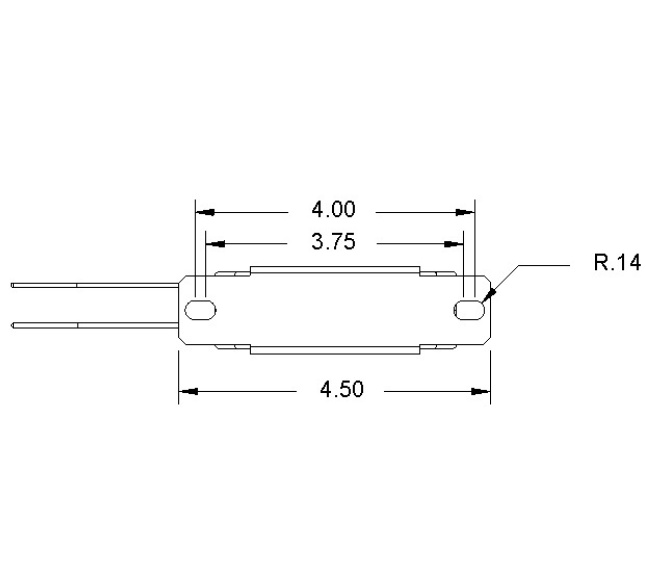

Model 58RBL / 58RBT / 58RT (Window Size: 1.25” Diameters)
Application: Used with ammeters, watt meters, and cross current compensation.
Frequency: 50-400 Hz
Insulation Level: 600 Volts, 10Kv BIL Full Wave
Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- Flexible leads are UL 1015 105˚C, C.S.A approved #16 AWG, 24” long standard length. Non-standard lengths are available upon request.
- Terminals are brass No. 8-32 UNC with one flat washer, one lock washer and one nut each.
- Approximate weight: 1.3 lbs.
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 58 |
| Input Range | 0-200AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 12.5VA |
| CT Ratio | 200:5A |
| CT Window | 1.25" Diameter |
| CT Continuous Thermal Rating Factor | 1.5 at 30°C amb., 1.33 at 55°C amb. |
