586-601 ITI

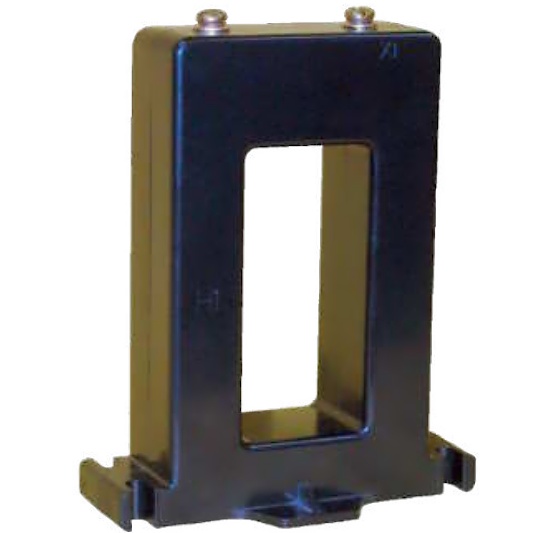

Model 586 600:5A Ratio CT, 1.56" x 3.56" Window, ITI

309.39 309.39 USD 309.39

309.39

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Window
  • CT Secondary Winding Resistance
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

Application

  • Metering.Continuous Thermal

Current Rating Factor

  • 1.33 at 30°C. amb.
  • 1.0 at 55°C. amb.

Frequency

  • 50-400 Hz.

Insulation Level

  • 600 Volts, 10 kV BIL full wave.

Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
Approximate weight: 1.5 lbs

Specifications

Brand Instrument Transformers Inc
Model 586
Input Range 0-600AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.6 B0.2
Output 0-5AAC
CT Ratio 600:5A
CT Continuous Thermal Rating Factor 1.33 at 30°C amb., 1.0 at 55°C amb.

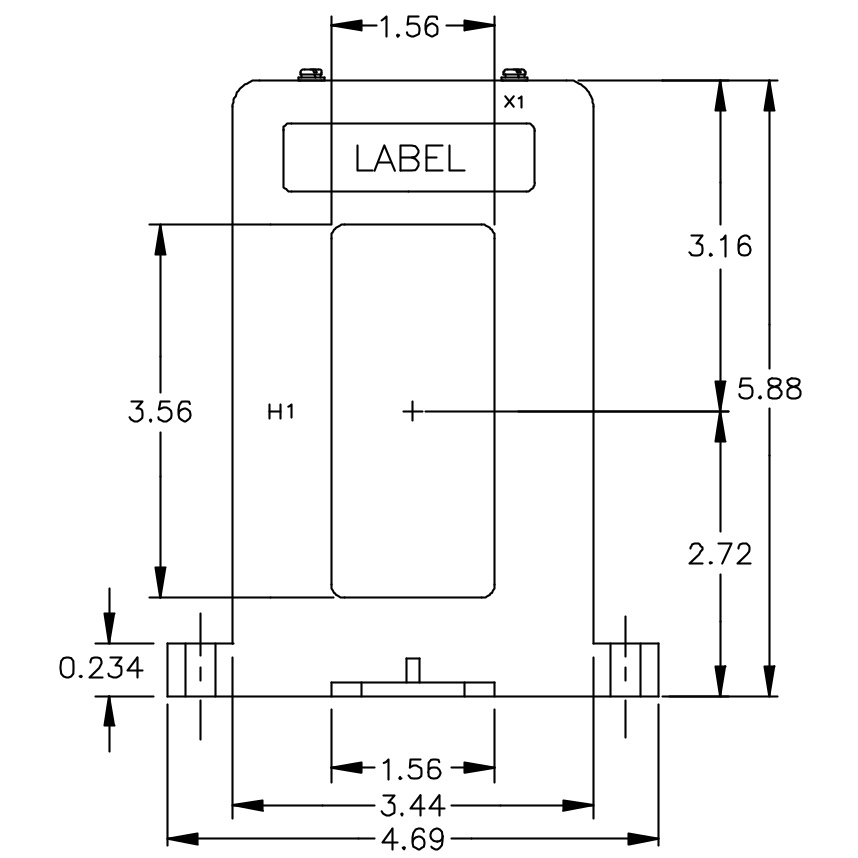

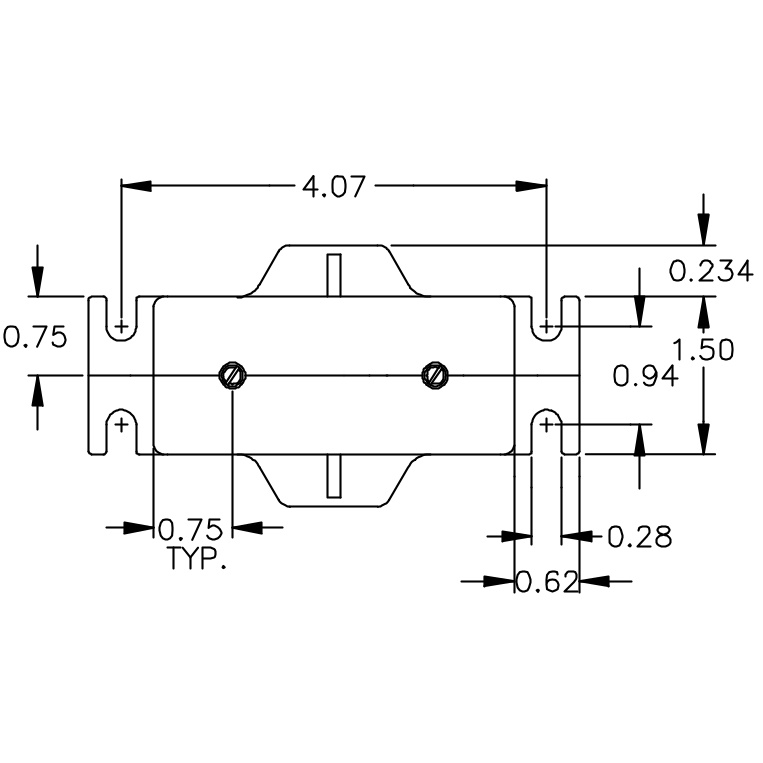

CT Window 1.56" x 3.56"
CT Secondary Winding Resistance 0.124Ω (124mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
