APPLICATION:
- Metering.
Continuous Thermal Current Rating Factor
- 1.33 at 30 °C. amb.
- 1.0 at 55 °C. amb.
Frequency
- 50-400 Hz.
INSULATION LEVEL
- 600 Volts, 10 kV BIL full wave.
Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.

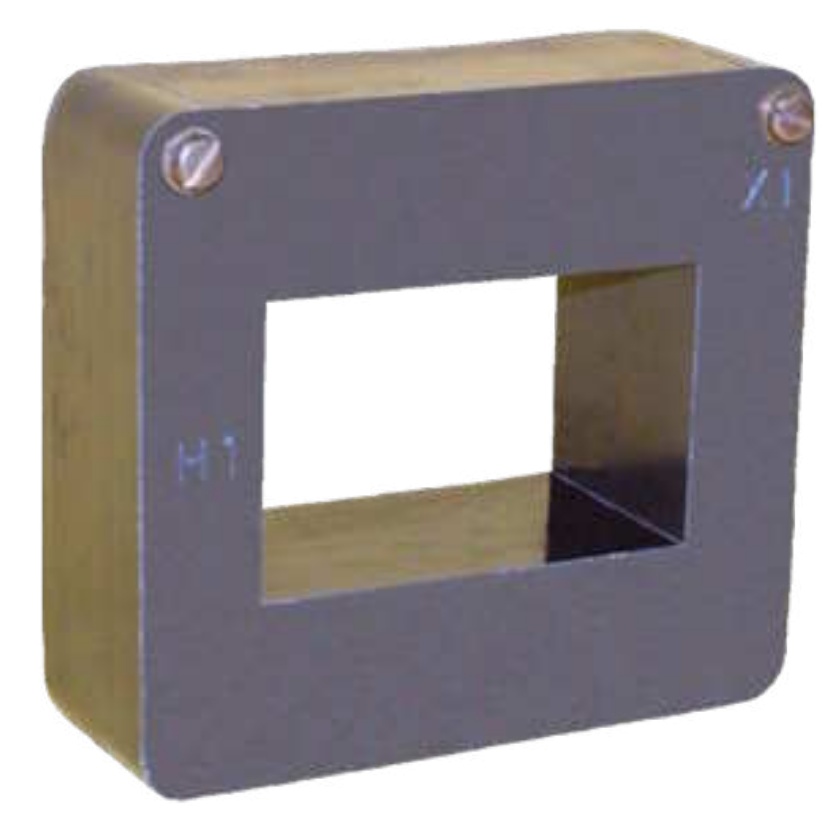

Cast resin construction.
Approximate weight 4 lbs.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 582 |
| Input Range | 0-600AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 B0.2 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Ratio | 600:5A |

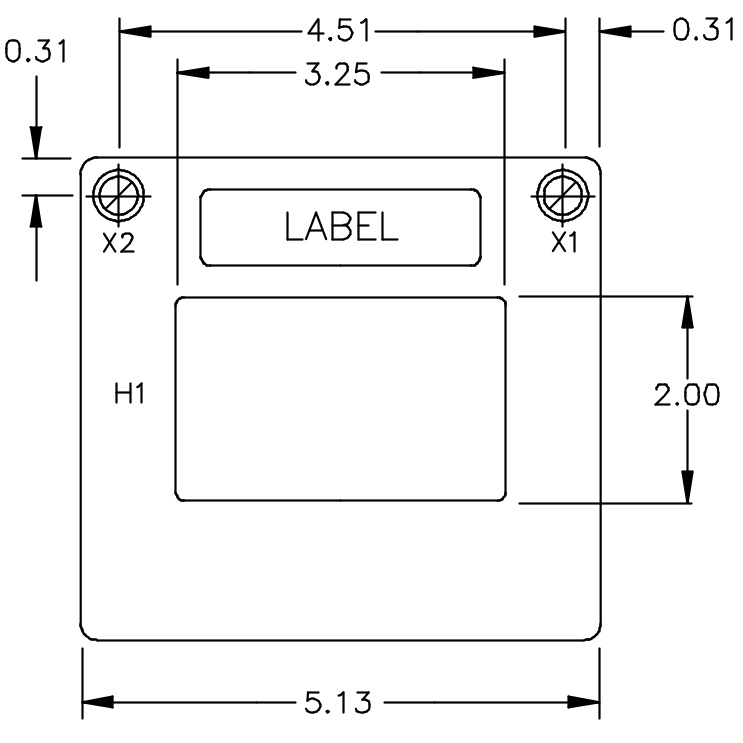

| CT Window | 3.25" x 2" |
