5714A

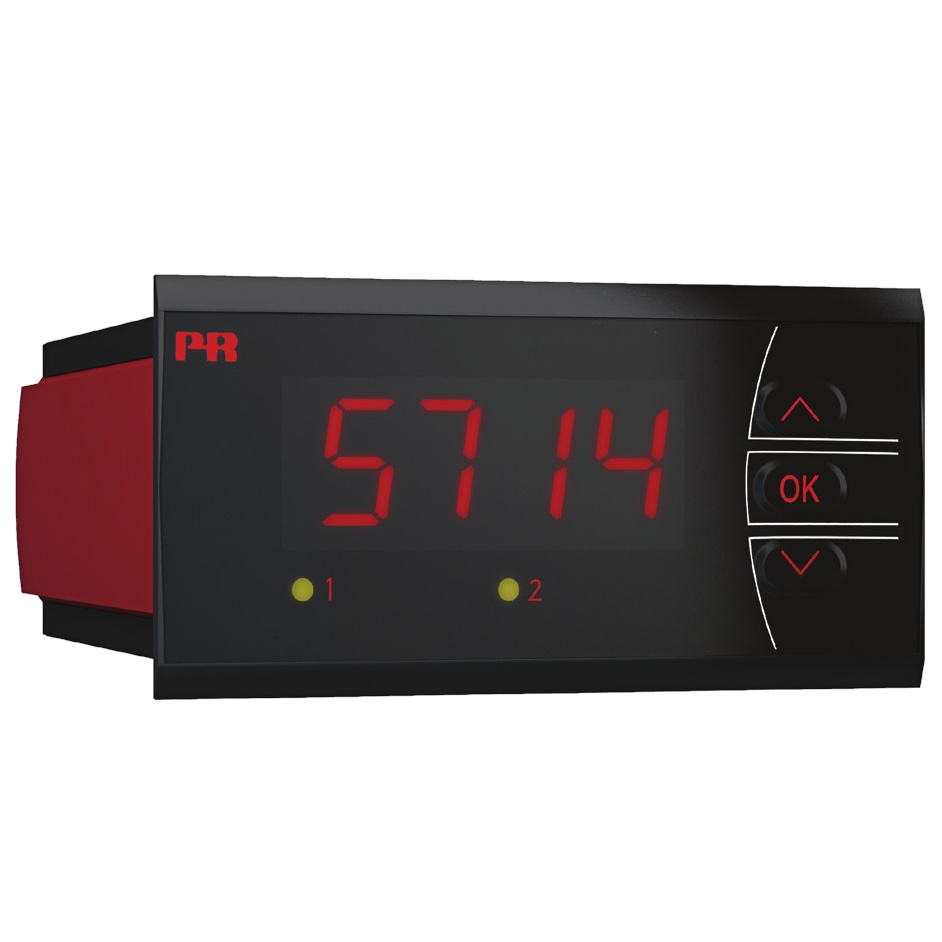

Model 5714 Process Meter, Programmable, 4-Digit LED Display, 21.6-253VAC 50/60Hz or 19.2-300VDC power supply, PR Electronics
Application
Display for digital readout of current / voltage / resistance / temperature or potentiometer signals.
Process control with 2 potential-free relays and / or analog output.
For local readout in extremely wet atmospheres with a specially designed splash-proof cover.
Technical characteristics

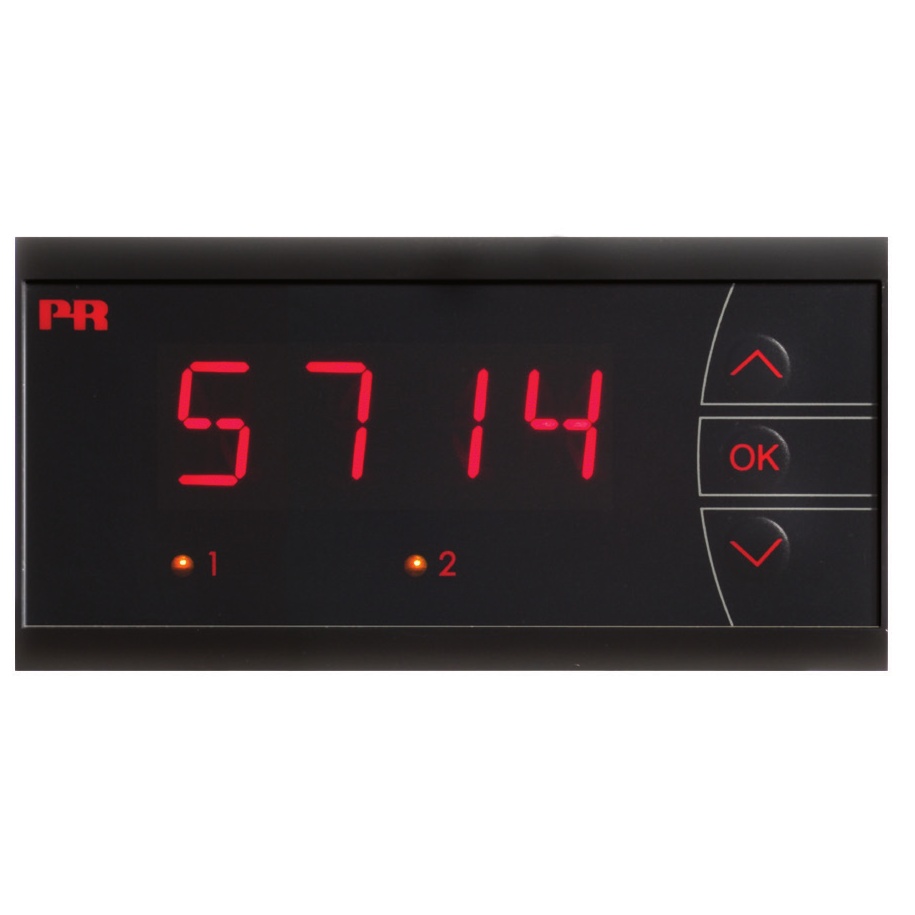

4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999...9999 with programmable decimal point and relay ON / OFF indication.
All standard operational parameters can be adjusted to any application by way of the front function keys.
Help texts in eight languages can be selected via a menu item.
PR 5714 is available fully-configured according to specifications ready for process control and visualization.
2.3 kVAC galvanic isolation between input, output and supply.
In versions with relay outputs the user can minimize the installation test time by activating / deactivating each relay independently of the input signal.

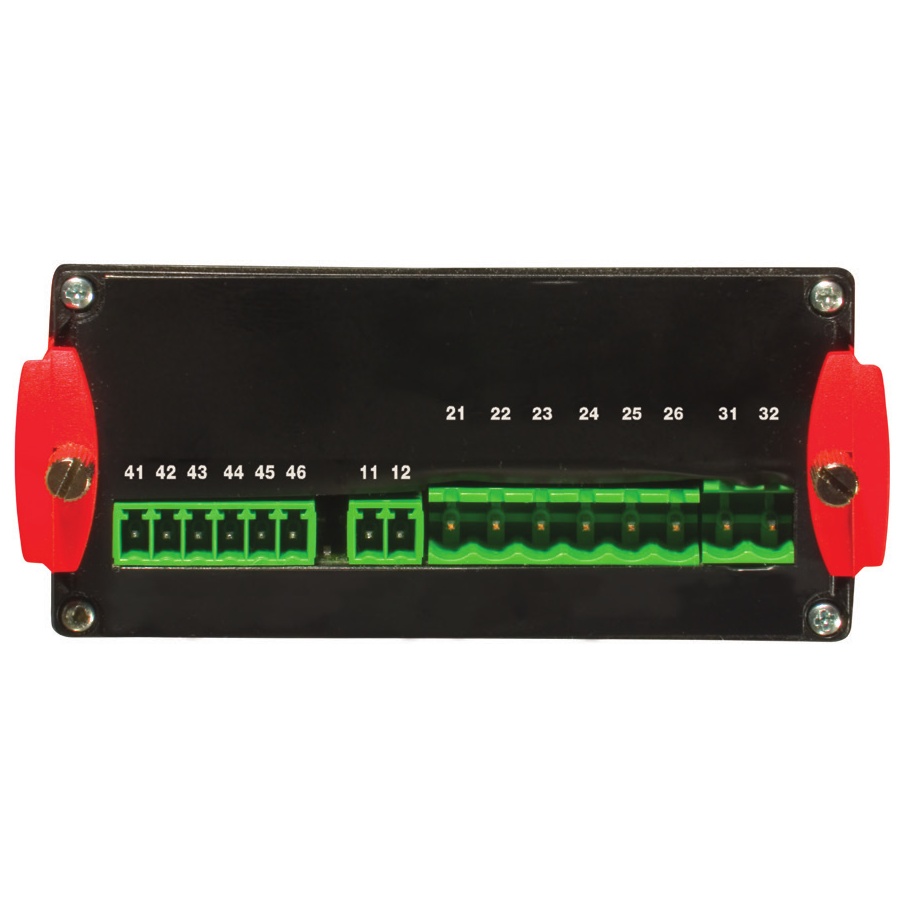

Mounting / installation
To be mounted in panel front. The included rubber packing must be mounted between the panel cutout hole and the display front to obtain a protection degree of IP65 (type 4X). For extra protection in extreme environments, PR5714 can be delivered with a specially designed splash-proof cover as accessory.
Specifications
Brand | PR Electronics |
Model | 5714 |
Form Factor | 96x48mm 1/8 DIN |
Input Frequency | DC |
Input Range | 0-12VDC, 0-1VDC, 0.2-1VDC, 2-10VDC, 0-23mADC, 0-20mADC, 4-20mADC, B-T/C, U-T/C, E-T/C, J-T/C, K-T/C, L-T/C, N-T/C, Pt1000 RTD, Pt100 RTD, Pt500 RTD, R-T/C, S-T/C, T-T/C, W3-T/C, Ni100 RTD, Ni200 RTD, Ni1000 RTD, Potentiometer 10 ohm to 100k ohm, W5-T/C, LR-T/C, Pt10 RTD, Pt20 RTD, Pt50 RTD, Pt200 RTD, Pt250 RTD, Pt300 RTD, Pt400 RTD, Ni50 RTD, Ni120 RTD, Cu10 RTD, Cu20 RTD, Cu50 RTD, Cu100 RTD, 0-10000 ohms, 0-10VDC |
Tariff Code | 9032.89.2000 |
ECCN | EAR99 |
