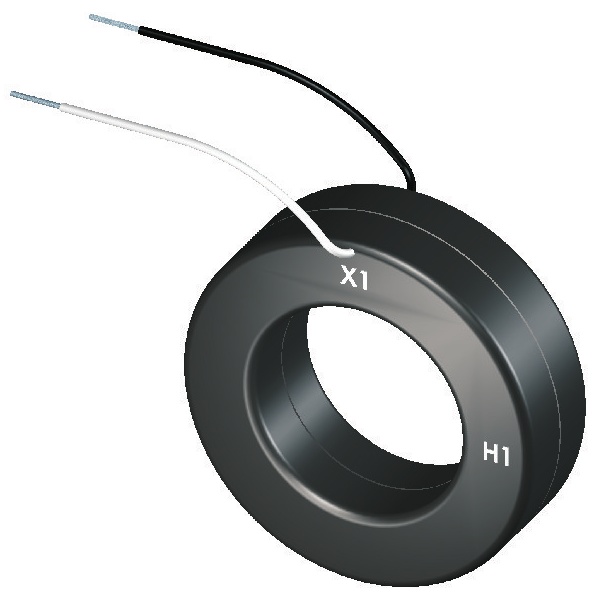

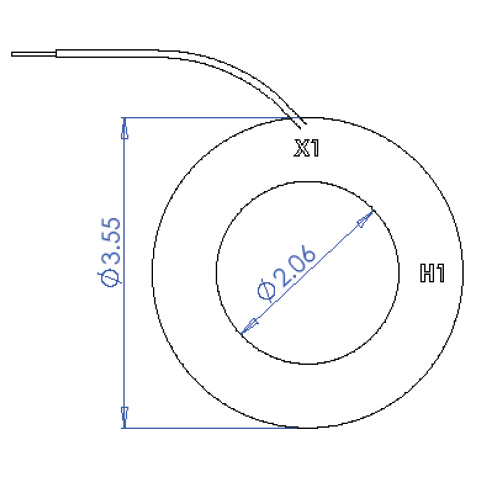

Model 56RL (2.06 inch window diameter and a thin round case with 24 inch leads)
- Application: Used with ammeters, watt meters, and cross current compensation.
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- Flexible leads available for all case configurations. Flexible leads are UL 1015 105 ̊C, C.S.A approved
#16 AWG, 24” long standard length. Non-standard lengths can be quoted upon request.
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 56 |
| Input Range | 0-50AAC |
| Input Frequency | 60Hz |
| Accuracy | 3% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 0.50VA |
| CT Ratio | 50:5A |
| CT Window | 2.06" Diameter |
