APPLICATION:
- Metering.
FREQUENCY:
- 50-400 Hz.
INSULATION LEVEL:
- 600 Volts, 10 kV BIL full wave.
CONTINUOUS THERMAL CURRENT RATING FACTOR:
- 1.33 at 30°C amb.
- 1.0 at 55°C amb.

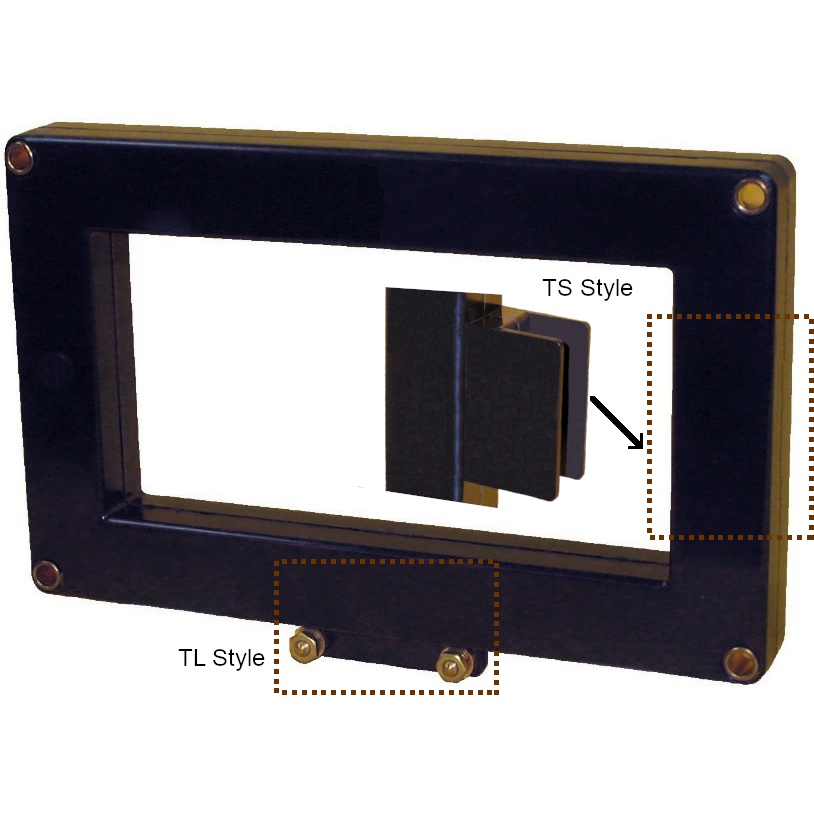

TERMINALS:
- Brass studs No. 10-32 with one flatwasher, lockwasher and regular nut.
- TL - Lower Mounted Terminals

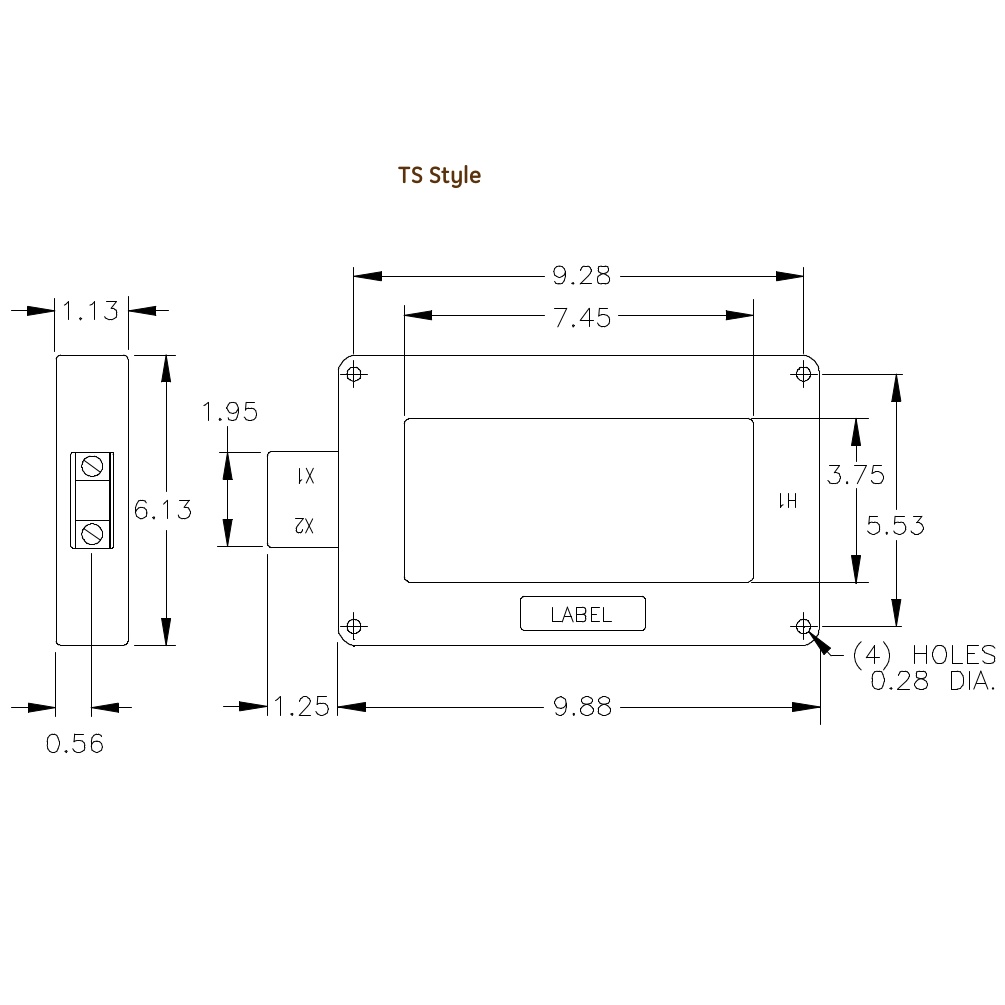

- TS - Side Mounted Terminals
Approximate weight 4 lbs.
Specifications

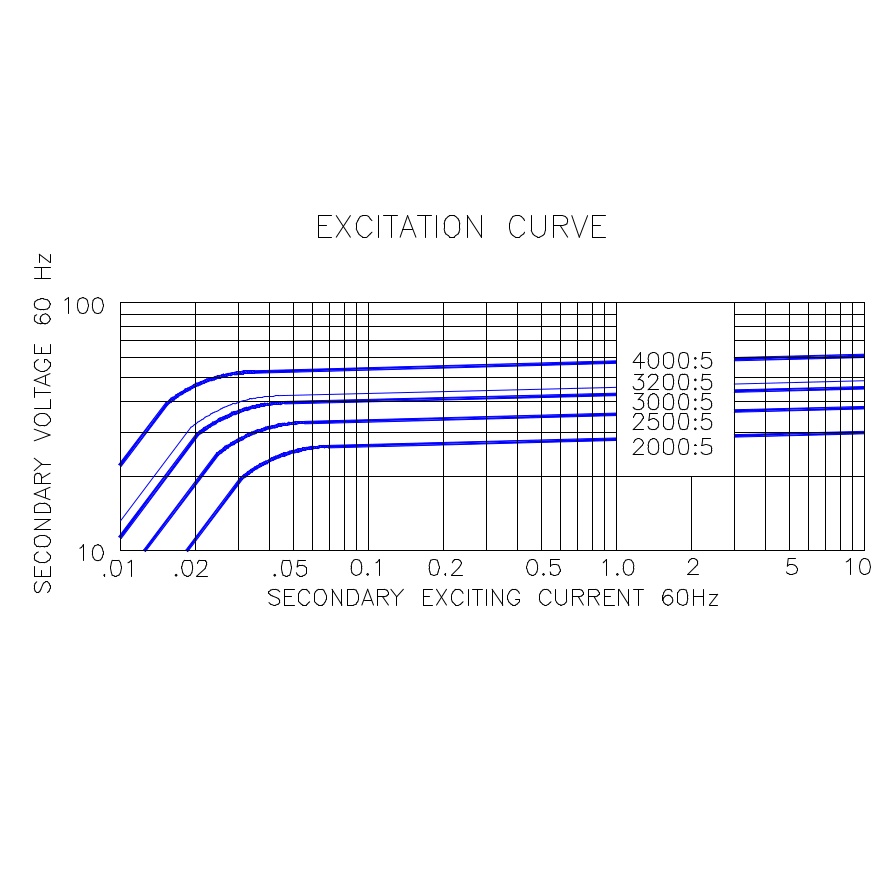

| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 568 |
| Input Range | 0-3000AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.6 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 1.33 at 30°C amb., 1.0 at 55°C amb. |
| CT Ratio | 3,000:5A |
| CT Secondary Winding Resistance | 0.625Ω (625mΩ) @ 75°C |
| CT Window | 3.75" x 7.45" |
