550T-041x071-202 EI

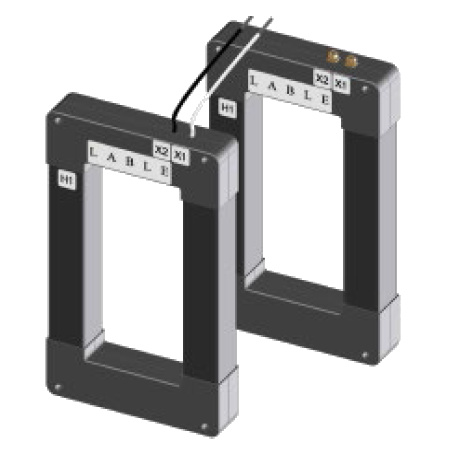

Model 550T 2000:5A Ratio CT, Split Core, 4.1"x7.1" Window, Electromagnetic Industries

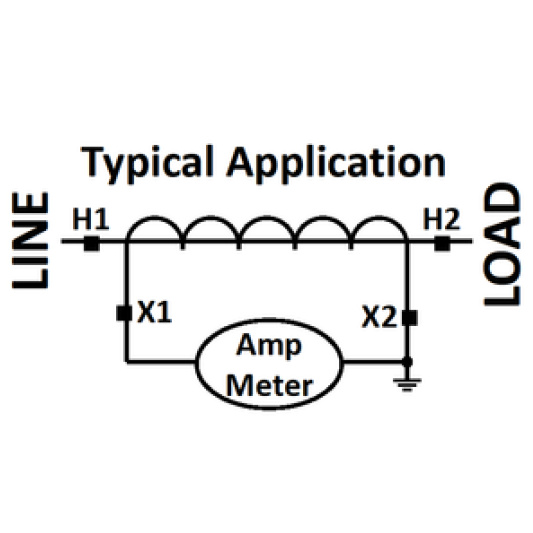

APPLICATION: Used with ammeters, watt meters and cross current compensation.
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600 Volts, 10Kv BIL Full Wave
CONTINUOUS THERMAL CURRENT RATING FACTOR: 1.33 @ 30°C. Amb.: 1.0 @55°C. Amb
- Flexible leads available for all case configurations. Flexible leads are UL 1015 105˚C, C.S.A approved #16 AWG, 24” long standard length. Non-standard lengths are available upon request.
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are only available on the square case configuration.
- Approximate weight: 8 to 20 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 550 |
| Input Range | 0-2000AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 0.6 B0.1, 0.6 B0.2, 0.6 B0.5 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Ratio | 2,000:5A |

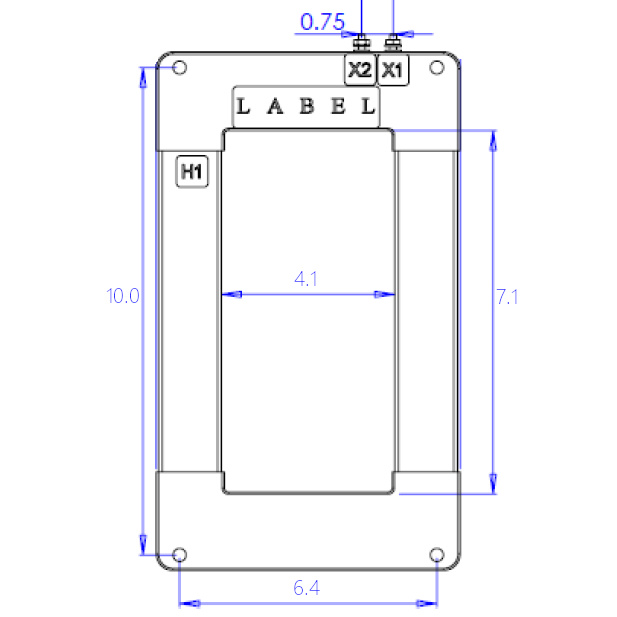

| CT Window | 4.1" x 7.1" |
| CT Burden VA Max. | 60.0VA |
