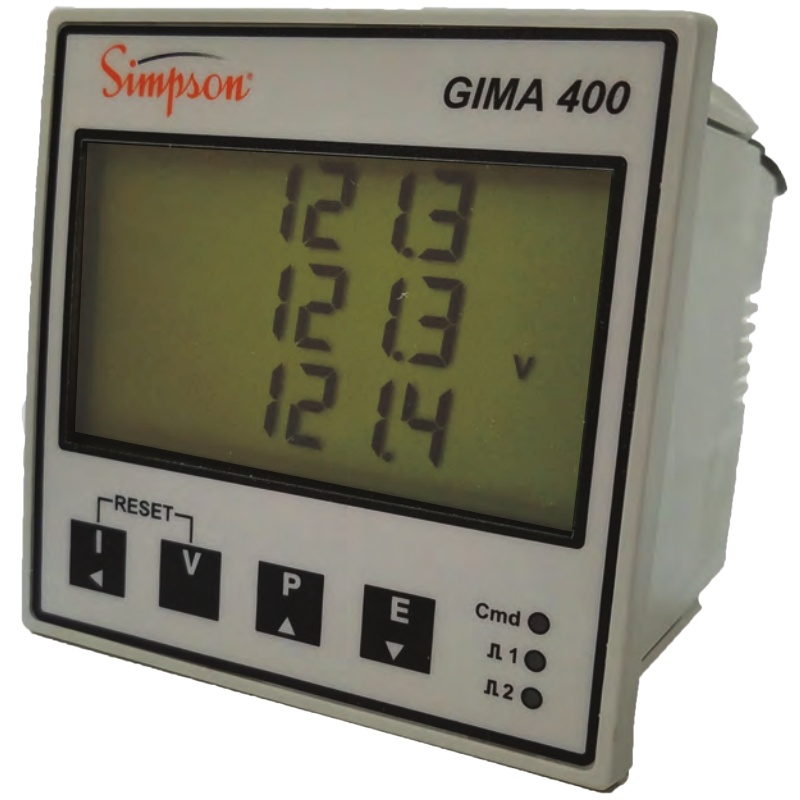

Model G400 100-480VAC L-L (57.7-277VAC L-N) 0-5AAC, 3P3/4W, 45-65Hz, 110VAC 45-65Hz Powered, with Modbus, Gima Series, Simpson Electric

511.13 511.13 USD 511.13

511.13

  • Brand
  • Model
  • Form Factor
  • Input Range
  • Input Range
  • Input Frequency
  • Input Frequency
  • Output
  • Tariff Code

This combination does not exist.

Features

  • 3Ø energy and power sub-meter
  • Standard 96x96 DIN Panel Mount
  • Pulse Output and MODBUS comms
  • Measures comprehensive range of energy and power parameters
  • 2 pulse outputs
  • 2nd pulse output gives kVArh/kVAh through selection link
  • Auto-CT rotation OR Factory Set Import/Export Option
  • 5/1Amp & 333mV retrofit CT input options
  • Individual Harmonics to the15th, THD to the 30th Option
  • Custom wall mount enclosure option.
  • Hours run
  • 5 Year Warranty
  • CE, UL, C-Tick accredited.

Model Options

  • Pulse Output Option
    • kWh & kVArh over 2 Pulse Outputs
    • Comprehensive range of energy & power parameters on LCD
    • Optional Individual Harmonics to the 15th, THD to the 30th on LCD
  • MODBUS RS485 Option
    • Comprehensive range of energy & power parameters on LCD & MODBUS
    • Optional Individual Harmonics to the 15th & THD to the 30th on LCD & over MODBUS

The Gima 400 is a metering solution designed to meet the requirements of both energy managers and electrical engineers.  It provides a powerful platform to analyse power quality yet allows for an extremely flexible communications output to fit around most requirements.  The backlit 3-line display allows for clear display of data in switch-room environments.  The Gima 400 is fitted with large rising cage terminals, allowing connection to a wide range of cables, from 0.25mm to 4mm sq.

The Gima 40's communication options are pulse output only, RS485 MODBUS.

Accuracy

  • kWh:
    • Class 1 per EN 62053-21 & BS 8431
    • ANSI C12.20 Class 0.5
  • kVArh: Class 2 per EN 62053-23 & BS 8431
  • kW & kVA: Class 0.25 IEC 60688
  • kVAr: Class 0.5 IEC 60688
  • Amps & Volts: Class 0.1 IEC 60688
  • Power Factor: ±0.2º
  • Neutral Current: Class 0.5 IEC 60688

PULSE OUTPUTS

  • Function: 1 pulse per unit of energy
  • Scaling: Configurable
  • Pulse Duration
  • Type: N/O volt free contact. Optically isolated
  • Contacts: 100mA ac/dc max; 70Vdc/33Vac max; 5W max. load
  • Isolation: 3.5kV 50Hz 1 minute

GENERAL

  • Operating: -10º to +55ºC
  • Storage: -25ºC to + 70ºC
  • Humidity: <75% non-condensing
  • Environment: IP54

MECHANICAL

  • Terminals: Rising Cage. 4mm2 (AWG) cable max
  • Enclosure: DIN 43700, 96x96
  • Material: Mablex with fire protection to UL94-V-0. Self-extinguishing
  • Dimensions: 96x9683.5mm (3.8”x3.8”x3.3”)
  • Weight: 250gms (0.55 lbs)

Specifications

Brand Simpson Electric
Model G400
Form Factor 96x96mm 1/4 DIN
Input Range 3P3W 100-480VAC L-L, 0-1A or 0-5AAC, 3P4W 100-480VAC L-L (57.7-277V L-N), 0-1A or 0-5AAC
Input Frequency 50Hz, 60Hz
Output Pulse, 2
Tariff Code 9030.33.0040
