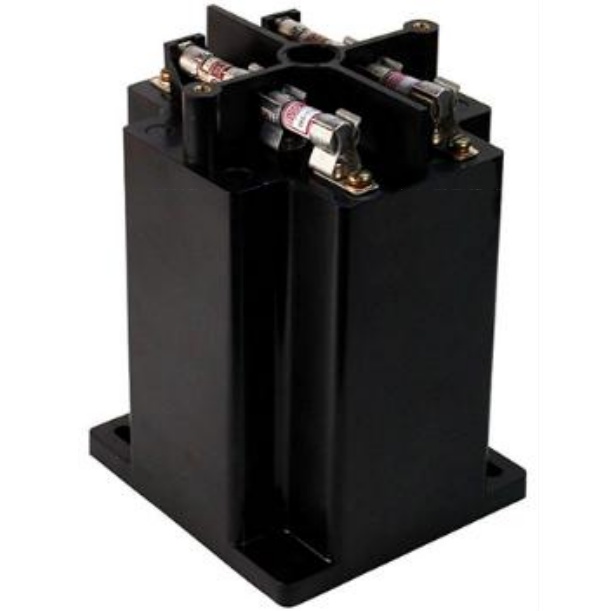

Model 475
- The core and coil assembly is encased in a thermoplastic shell and filled with resin.
- These transformers are designed for operation line-to-line. They may also be operated line-to-ground or line-to-neutral at reduced voltage voltage, (58 % of rated volts).
- It is desirable to use a 3.0 amp BBS type or equal fuse in the secondary to protect the transformer.
- Model 475 transformers are ANSI C57.13 group 1, except for 475-480 and 475-600 which are group 2.

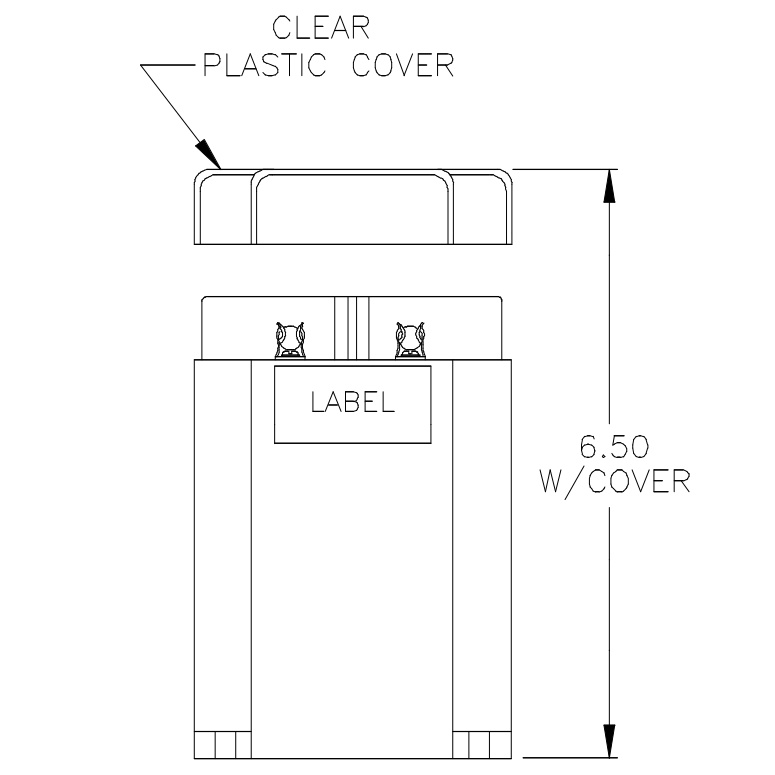

- Transformer has a clear plastic cover.
Specifications
- Application: 60Hz
- Secondary Voltage: 120VAC
- Insulation Level: 600V, 10kV BIL full wave

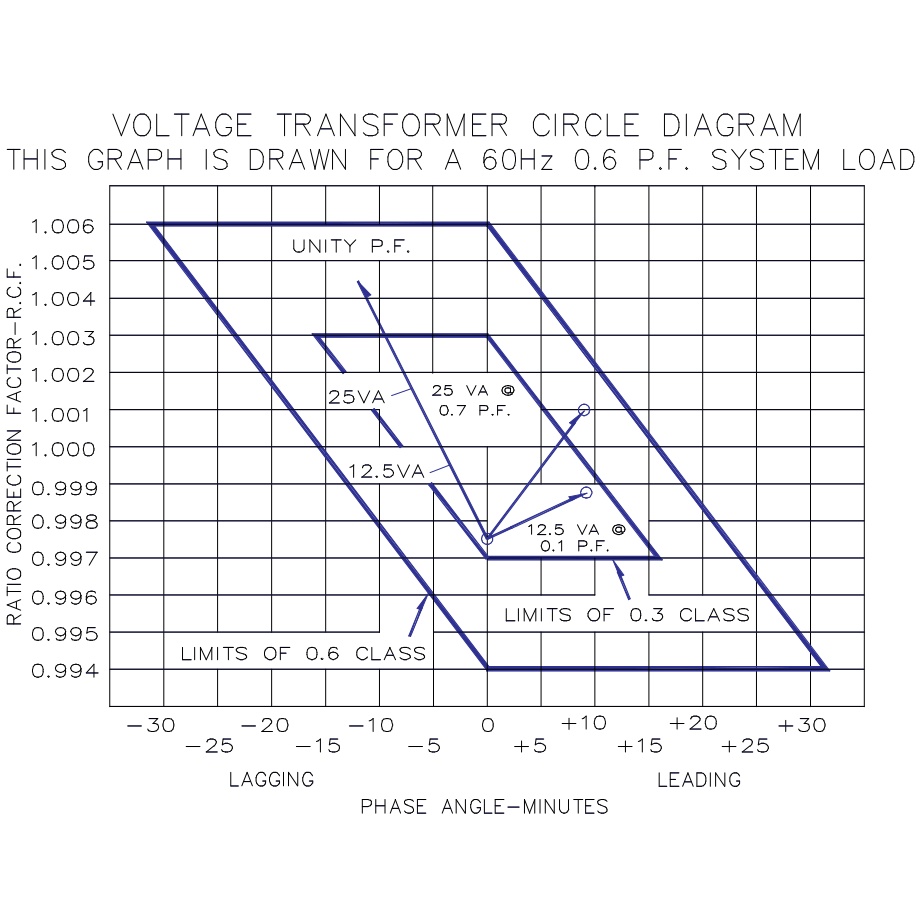

- Accuracy Class: 0.3 W, 0.6 X, 1.2 M at 60 Hz.
- Thermal Rating:
- 300 VA at 30°C. amb.
- 200 VA at 55°C. amb.

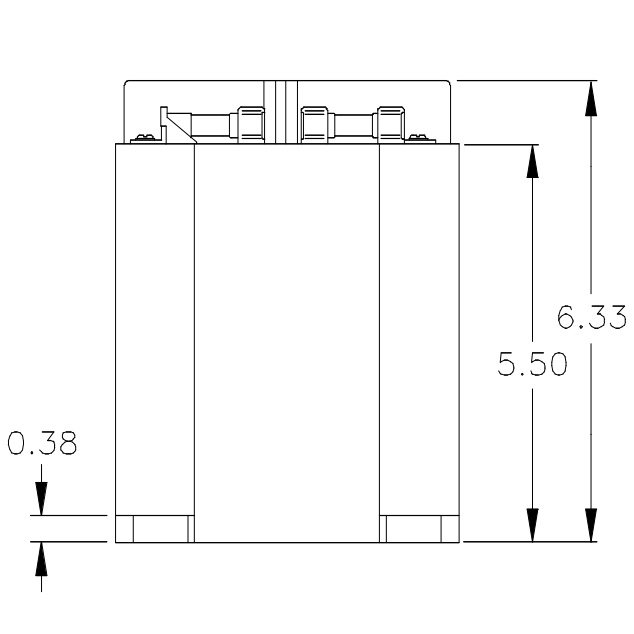

- Weight: Approximately 12.5 pounds

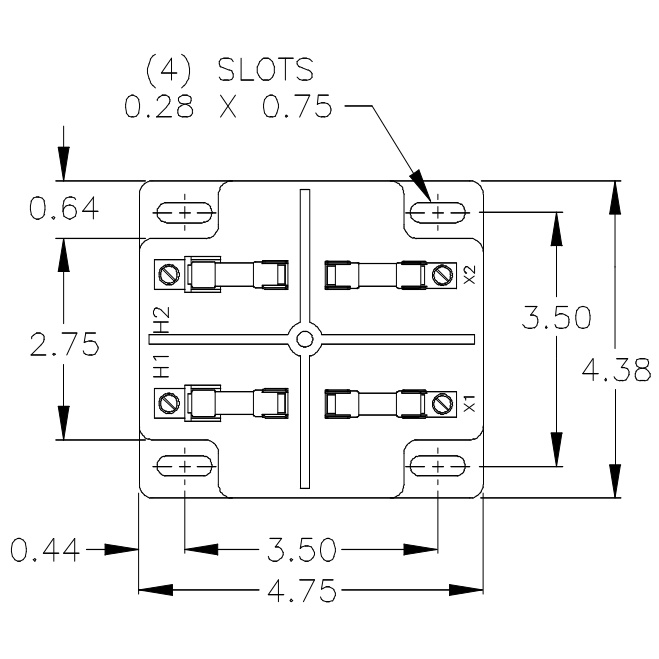

- Terminals: The primary and secondary terminals are No. 8 brass screws with flatwasher and a lockwasher.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 475 |
| Input Range | 277VAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 W, 0.6 X, 1.2 M |
| Output | 120VAC |
| Tariff Code | 8504.31.4065 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Potential Transformers | |
|---|---|
| PT/VT Group | Group 1. Rated Voltage: 100% L-L or L-G |
| PT/VT Turns Ratio | 2.31/1 |
| PT/VT Thermal Rating | 300VA at 30°C amb., 200VA at 55°C amb. |
| PT/VT Rec. Primary Fuse Rating | 4.0 A |
