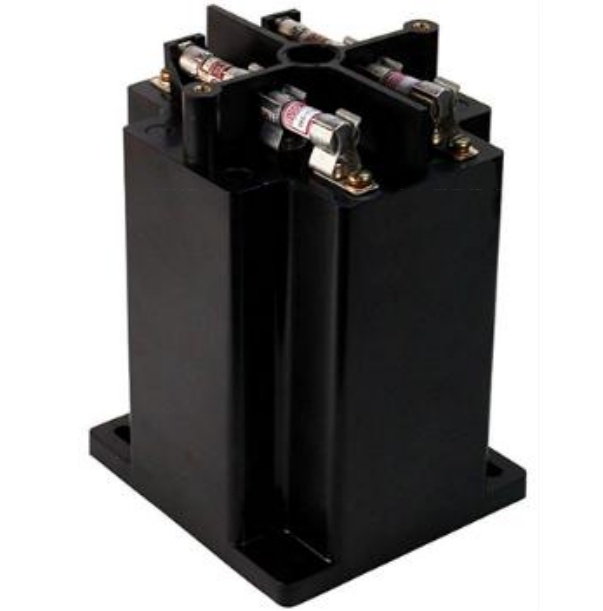

Model 475 240:120V Ratio PT/VT, Single Phase, ITI

615.51 615.51 USD 615.51

615.51

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • PT/VT Group
  • PT/VT Turns Ratio
  • PT/VT Thermal Rating
  • PT/VT Thermal Rating
  • PT/VT Rec. Primary Fuse Rating

This combination does not exist.

Model 475

  • The core and coil assembly is encased in a thermoplastic shell and filled with resin.
  • These transformers are designed for operation line-to-line. They may also be operated line-to-ground or line-to-neutral at reduced voltage voltage, (58 % of rated volts).
  • It is desirable to use a 3.0 amp BBS type or equal fuse in the secondary to protect the transformer.
  • Model 475 transformers are ANSI C57.13 group 1, except for 475-480 and 475-600 which are group 2.

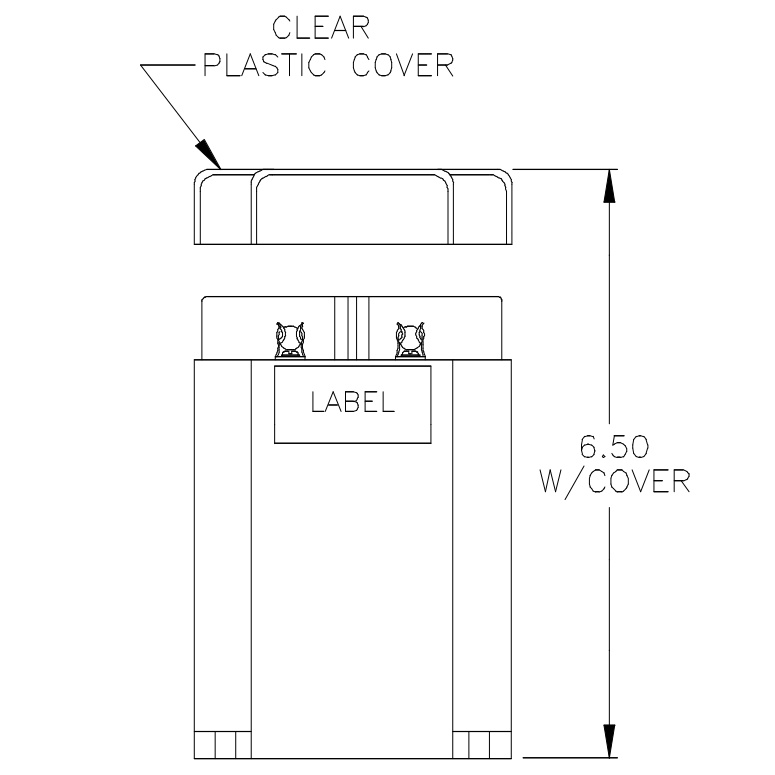

  • Transformer has a clear plastic cover.

Specifications

  • Application: 60Hz
  • Secondary Voltage: 120VAC
  • Insulation Level: 600V, 10kV BIL full wave

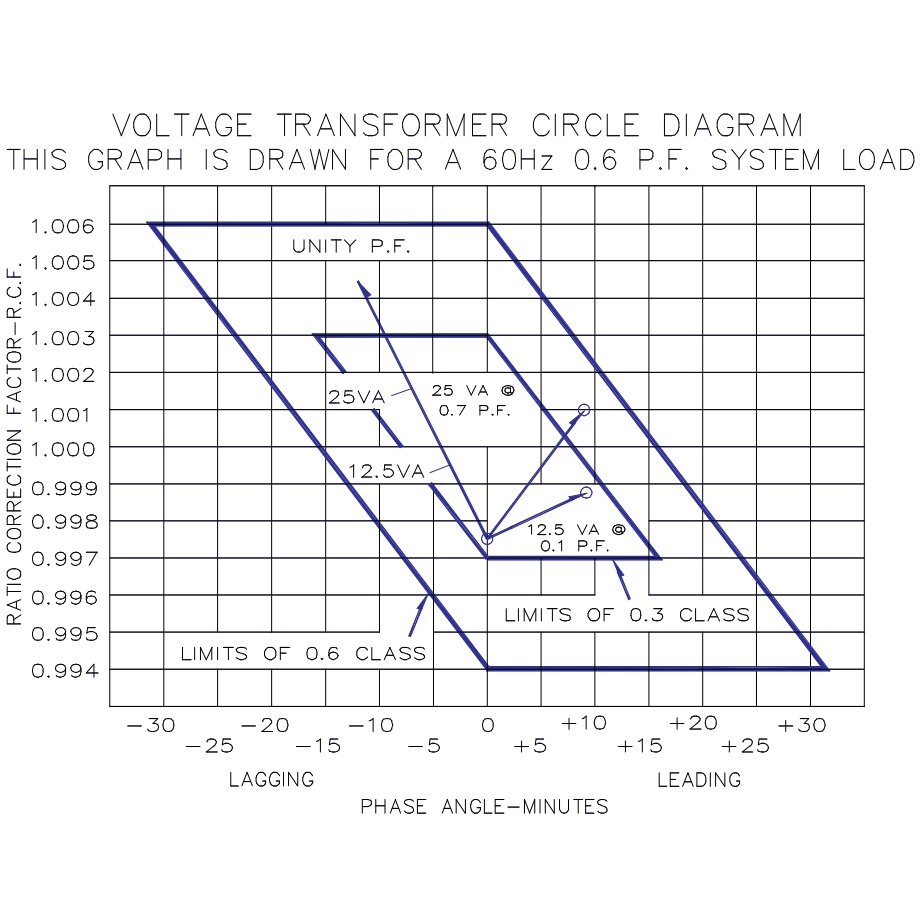

  • Accuracy Class: 0.3 W, 0.6 X, 1.2 M at 60 Hz.
  • Thermal Rating:
    • 300 VA at 30°C. amb.
    • 200 VA at 55°C. amb.
  • Weight: Approximately 12.5 pounds

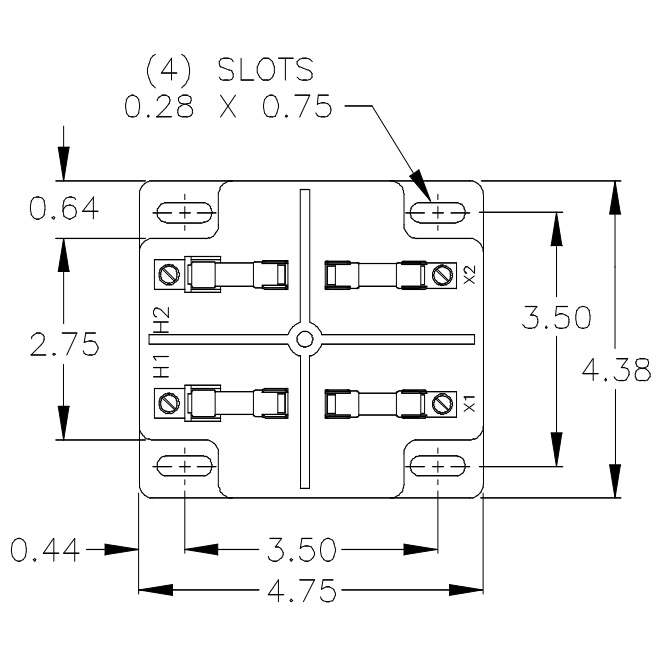

  • Terminals: The primary and secondary terminals are No. 8 brass screws with flatwasher and a lockwasher.


Specifications

Product
Brand Instrument Transformers Inc
Model 475
Input Range 240VAC
Input Frequency 60Hz
Accuracy 0.3 W, 0.6 X, 1.2 M
Output 120VAC
Tariff Code 8504.31.4065
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Potential Transformers
PT/VT Group Group 1. Rated Voltage: 100% L-L or L-G
PT/VT Turns Ratio 2/1
PT/VT Thermal Rating 300VA at 30°C amb., 200VA at 55°C amb.
PT/VT Rec. Primary Fuse Rating 4.0 A
