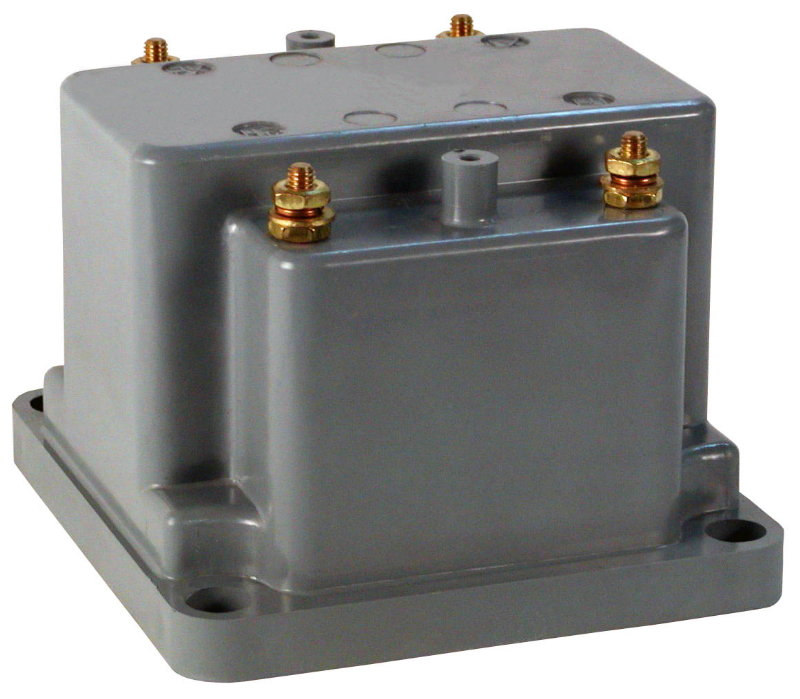

460-277 ITI
Model 460 277:120V Ratio PT/VT, Single Phase, ITI
FREQUENCY: 60 Hz
STANDARD SECONDARY VOLTAGE: 120V
INSULATION LEVEL: 600V, 10kV BIL full wave
ACCURACY CLASS: 0.6 W, 1.2 X at 60 Hz
THERMAL RATING: 150VA at 30°C amb., 100VA at 55°C amb.
- The core and coil assembly is encased in a thermoplastic shell and filled with resin.
- These transformers are designed for operation line-to-line. They may also be operated line-to-ground or line-to-neutral at reduced voltage (58% of rated volts).
- Terminals are brass studs No. 10-32 with one lockwasher, flatwasher, and regular nut.
- 460-480 and 460-600 are ANSI C57.13 Group 2.
- 480V for 480V Wye, 4:1 turns ratio
- 600V for 600V Wye, 5:1 turns ratio
- All others are ANSI C57.13 Group 1.
- 120V for 208V Wye, 1:1 turns ratio
- 240V for 416V Wye, 2:1 turns ratio
- 300V for 520V Wye, 2.5:1 turns ratio
- It is desirable to use a 1.6 amp fuse in the secondary to protect the transformer.
- Models designed specifically for 50 Hz operation (468 are available with reduced performance.
- Each transformer has two plastic terminal covers.
- Approximate weight: 7.75 lbs
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 460 |
Input Range | 0-277VAC |
Input Frequency | 60Hz |
Accuracy | 0.6 W, 1.2 X |
Output | 120VAC |
Tariff Code | 8504.31.4065 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Potential Transformers | |
---|---|
PT/VT Group | Group 1. Rated Voltage: 100% L-L or L-G |
PT/VT Turns Ratio | 2.31/1 |
PT/VT Thermal Rating | 150VA at 30°C amb., 100VA at 55°C amb. |
PT/VT Rec. Primary Fuse Rating | 2.0 A |
