These transformers are designed for line to line operation but may also be used in line to neutral or line to ground configuration at 58% of rated voltage. They are encased in a thermoplastic case with the core and windings encapsulated in resin. It is recommended that a 1.6 Amp fuse be used in the secondary to protect the transformer.
FREQUENCY: 50/60 Hz
STANDARD SECONDARY VOLTAGE: 120 VAC
INSULATION LEVEL: 600 Volts, 10Kv BIL Full Wave
ACCURACY CLASS: 0.6W, 1.2 X @60Hz
ACCURACY CLASS: 0.5 @ 10VA, 1.0 @ 20VA at 50Hz
THERMAL RATING: 50Hz 125 VA @ 30°C. amb
THERMAL RATING: 60Hz 150 VA @ 30°C. amb

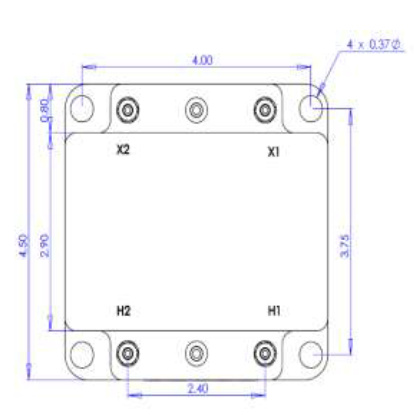

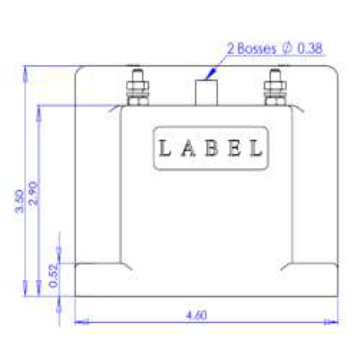

- Terminals are No. 10-32 brass studs with flat washer, lock washer and nut.
- Note: All transformers listed with the exception of the 480v and 600v are ANSIC57.13 group 1.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 460 |
| Input Range | 277VAC |
| Input Frequency | 60Hz |
| Accuracy | 0.6 W, 1.2 X |
| Output | 120VAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Potential Transformers | |
|---|---|
| PT/VT Group | Group 1. Rated Voltage: 100% L-L or L-G |
| PT/VT Turns Ratio | 2.31/1 |
| PT/VT Thermal Rating | 150VA at 30°C amb., 100VA at 55°C amb. |
| PT/VT Rec. Primary Fuse Rating | 2.0 A |
