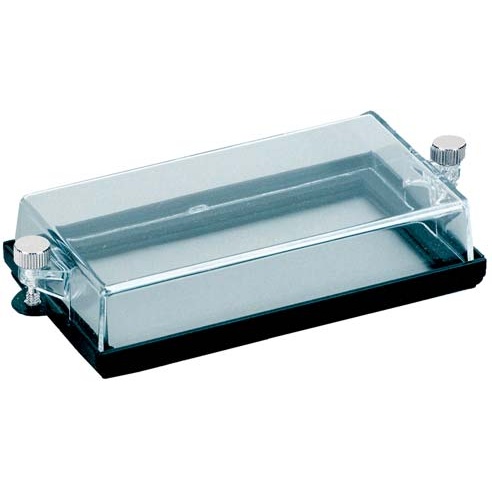

1/8 DIN NEMA 4 Removable Cover
- Protects 1/8 DIN indicators and controllers
- Dust tight and water tight to NEMA 4 standards
- Removable front cover allows access to programming buttons or scaling potentiometers
Specifications
- Lens Material: Clear 94-V-0 UL-rated polycarbonate with UV inhibitor
- Gasket Material: Closed Cell Neoprene
- Bezel Material: Steel
- Bezel Finish: Black Polyurethane

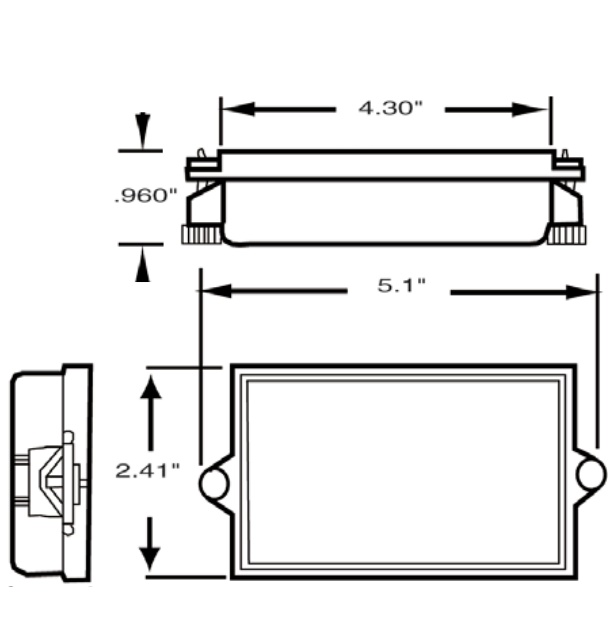

- Bezel Dimensions: 4.3” x 2.41” x 0.28” (109.2mm x 61.2mm x 7.1mm)
- Overall Dimensions: 4.3” x 2.41” x 0.96” (109.2mm x 61.2mm x 24.4mm)
- Panel Cutout: 3.66” x 1.79” (93mm x 45.5mm)
Specifications
| Brand | Simpson Electric |
| Form Factor | 96x48mm 1/8 DIN |
| Tariff Code | 9030.90.8823 |
| ECCN | EAR99 |
