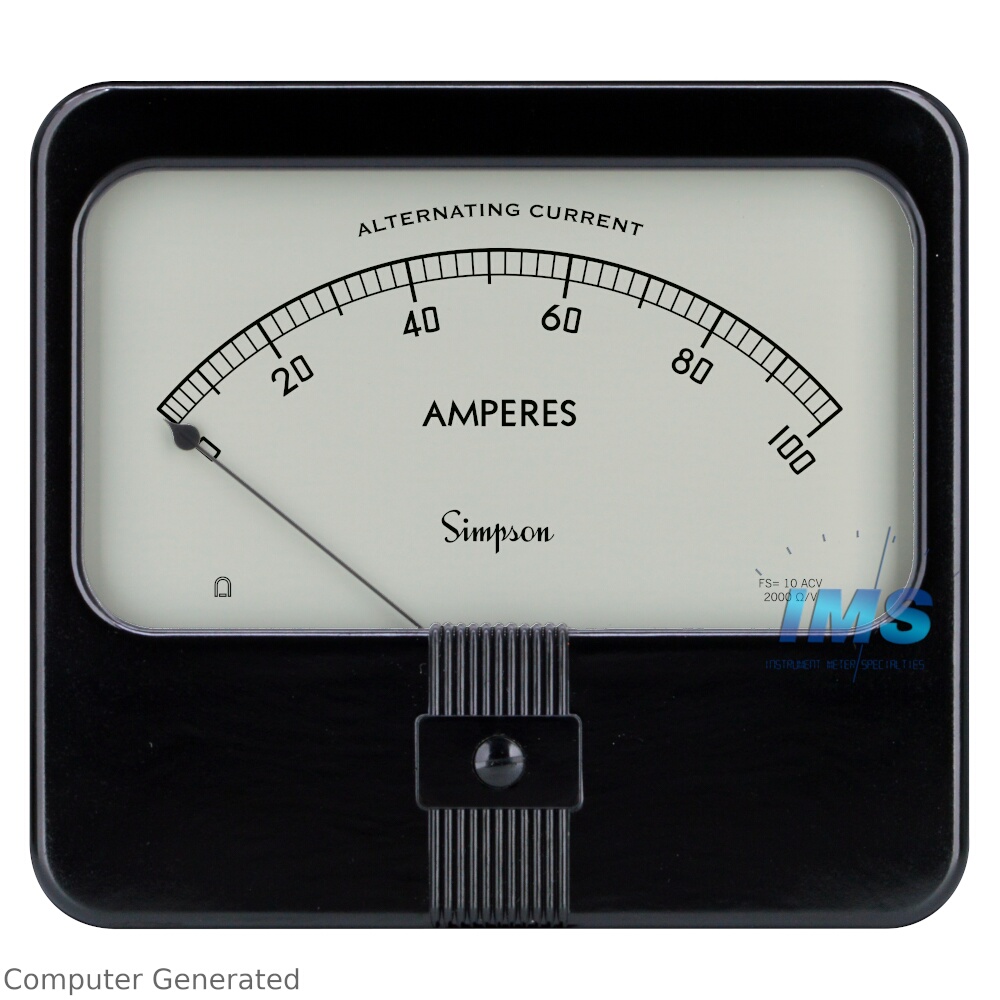

Model 49 0-10VAC Scale 0-100AAC, 2kΩ/V, 4.5" Rectangular series, Simpson Electric

207.34 207.34 USD 207.34


  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized.

This meter features a high precision full wave Germanium rectifier.  The meter was designed for use with an external current transformer and a current to voltage transformer or a single current to voltage transformer.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.


Brand Simpson Electric
Series Rectangular
Model 49

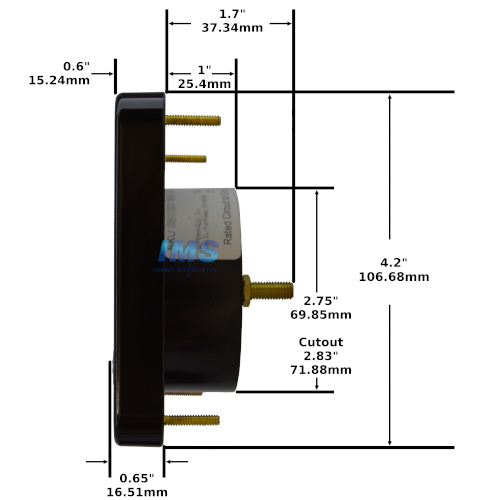

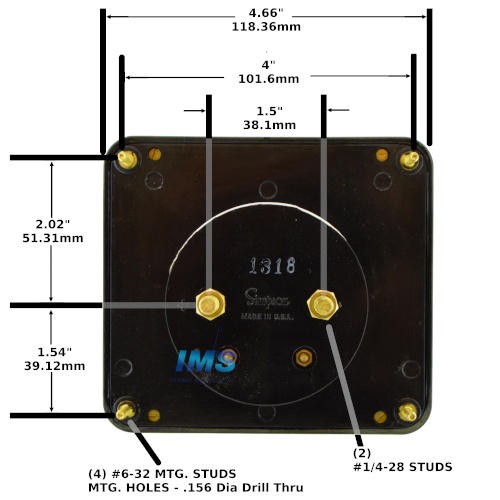

Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Range 0-10VAC
Input Frequency 60Hz
Scale, Range, or Display 0-100AAC
Accuracy ±3% of Full Scale
Tariff Code 9030.33.0040
