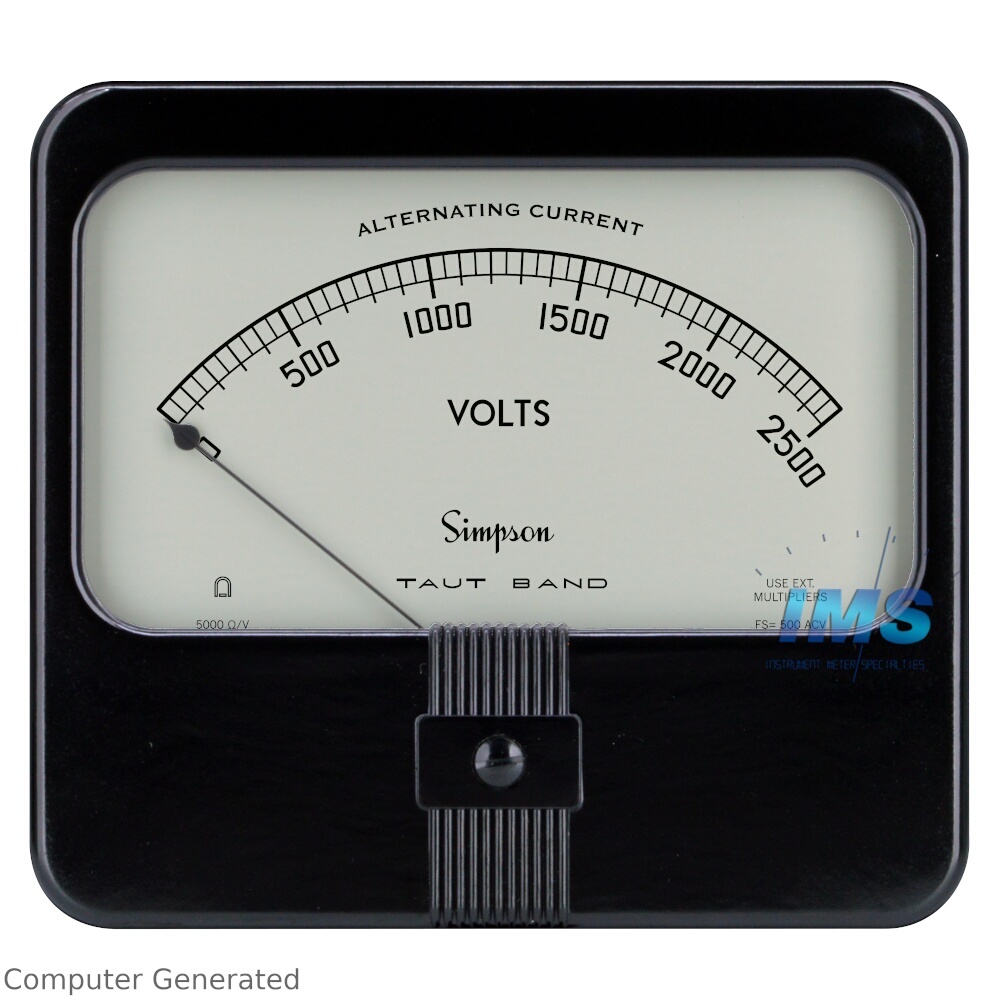

Model 49T 0-500VAC Scale 0-2500VAC, Red Knife-edge Pointer, with Ext. Mult., 5K ohm/V, 4.5" Rectangular series, Simpson Electric See Item Notes

829.26 829.26 USD 829.26


  • Brand
  • Model
  • Series
  • Form Factor
  • Input Frequency
  • Input Range
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized.

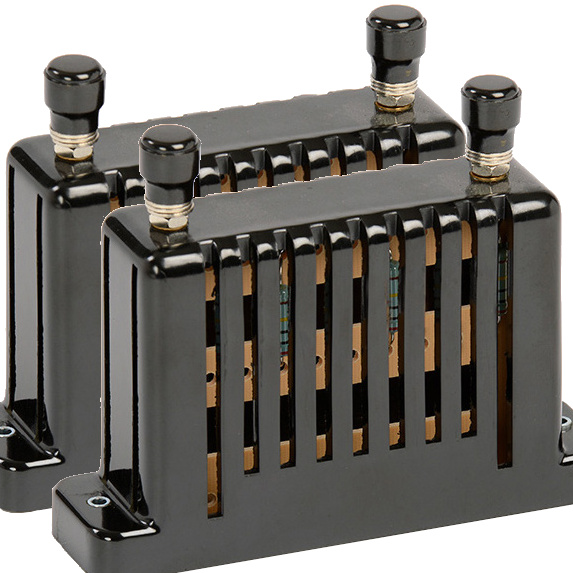

This meter features a high precision full wave Germanium rectifier, and has the same 5000 Ω/V as a Simpson 260 ACV Range albeit at a higher voltage.  The meter utilizes two model 183 multiplier boxes to safely measure the voltage.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.


Brand Simpson Electric
Model 49
Series Rectangular

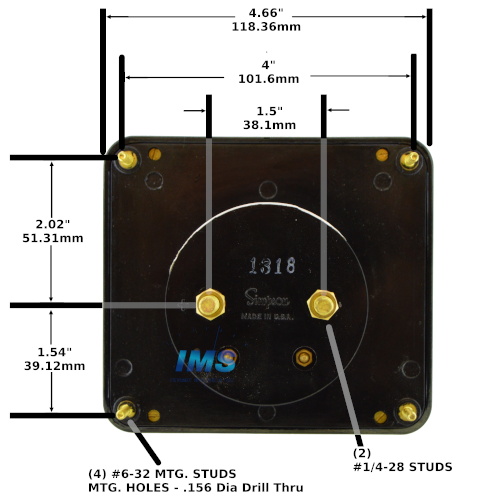

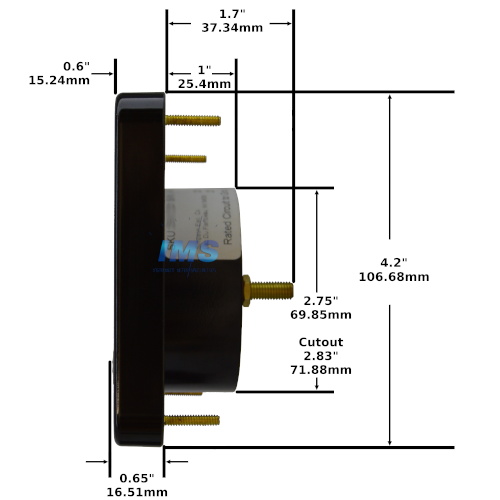

Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Frequency 60Hz
Input Range 0-2500VAC
Scale, Range, or Display 0-2500VAC
Accuracy ±3% of Full Scale
Tariff Code 9030.33.0040
