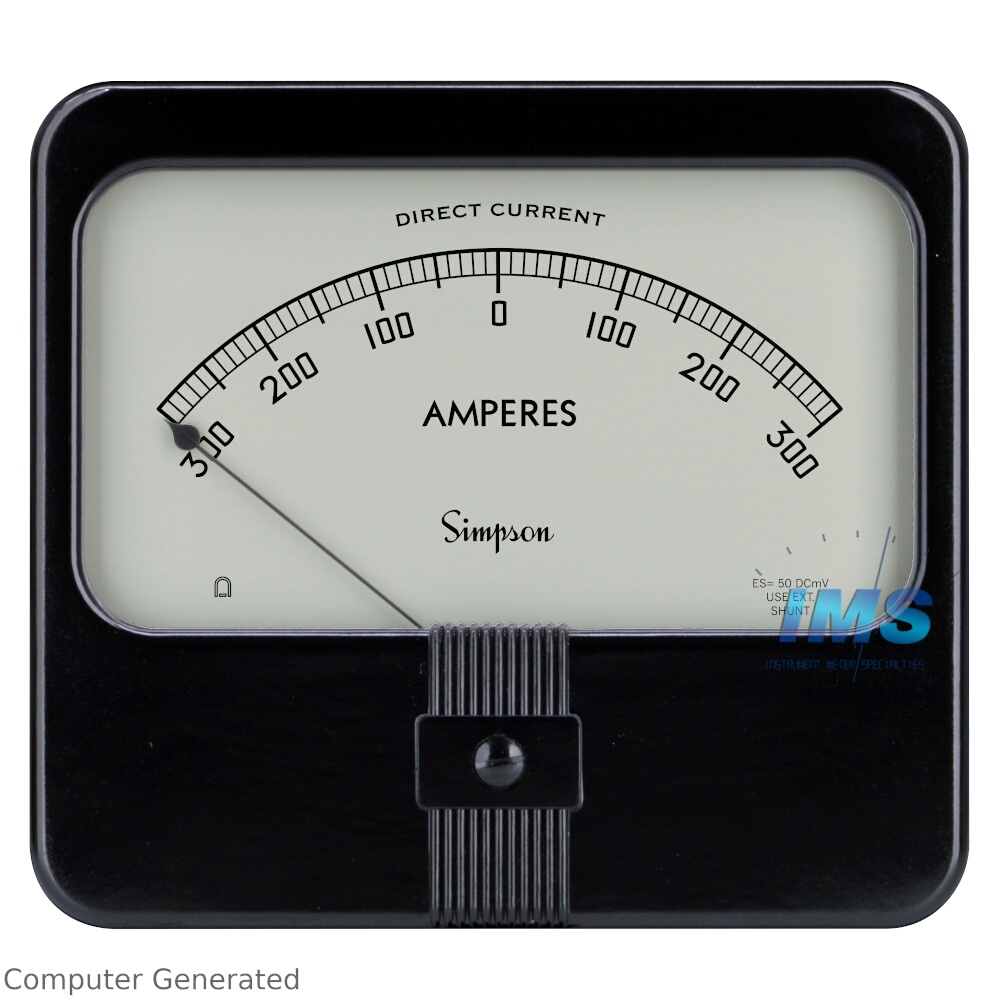

Model 29 50-0-50mVDC Scale 300-0-300ADC, 4.5" Rectangular series, Simpson Electric

157.83 157.83 USD 157.83

157.83

Not Available For Sale

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.

These meters require an external shunt (sold separately). The meters are calibrated for external 5-foot or 0.065Ω leads. Each 0.1Ω of resistance above or below that value changes the indication by 1% at full scale.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized.


As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Brand Simpson Electric
Series Rectangular
Model 29
Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Range 50-0-50mVDC
Input Frequency DC
Scale, Range, or Display 300-0-300ADC RL200
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
ECCN EAR99
