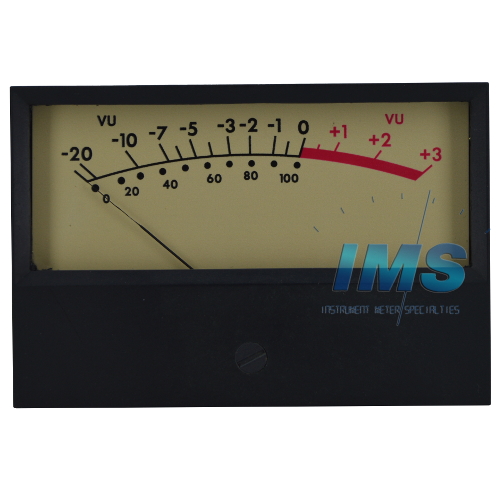

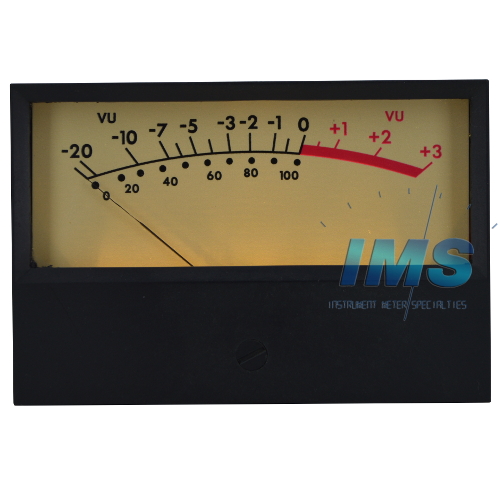

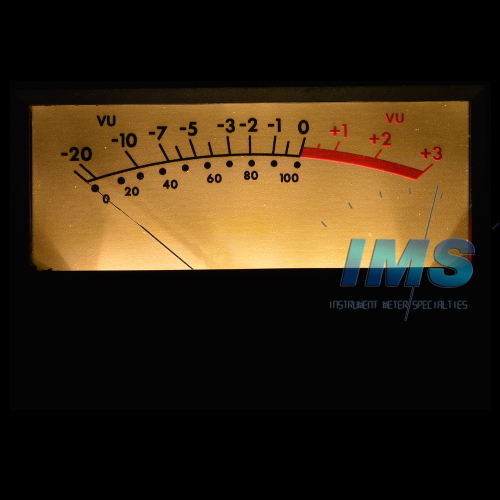

One of the few meters out there with an all Bakelite case and cover construction, the Designer series by Simpson Electric combines a highly flattened arc with wide case for a clean design. This meter features two extra terminals for the 20-28VDC illumination, and can work with the CA700 compressor, which provides 28V.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Simpson Electric |
| Series | Designer |
| Model | 543 |

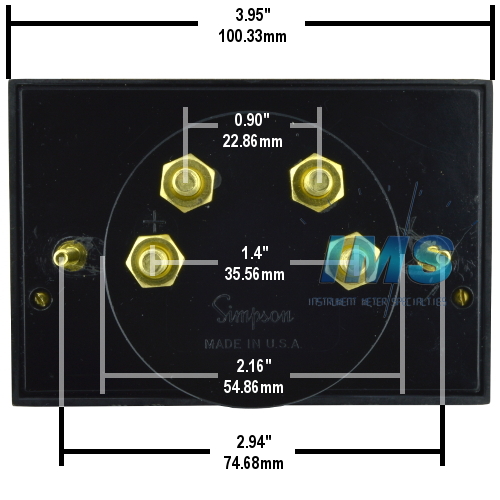

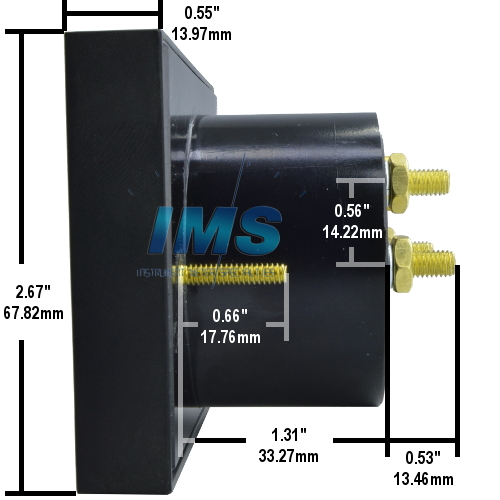

| Form Factor | 2-Stud Mount, Panel: 3.5-Inch ANSI C39.1 |
| Input Range | 0-1.734VAC |
| Input Frequency | Audio (Cal. at 1kHz) |
| Scale, Range, or Display | VU-A |
| Accuracy | ±3% of Full Scale |
| Tariff Code | 9030.33.0040 |
| ECCN | EAR99 |
