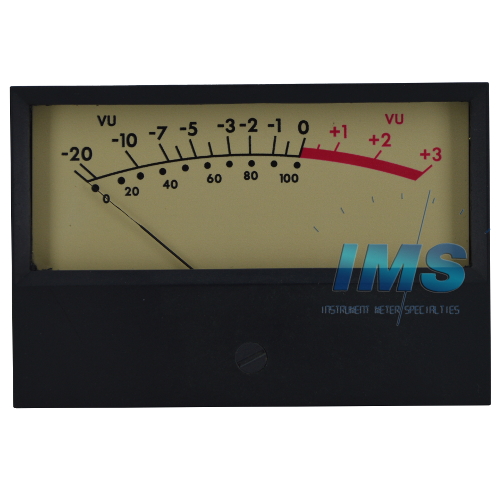

Model 543 0-1.734VAC Scale VU-A, 20-28VDC Front Illuminated, Black Pointer, Use Ext. 3.6K-Ohm series Resistor, 3.5" Designer series, Simpson Electric

215.56 215.56 USD 215.56


  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

One of the few meters out there with an all Bakelite case and cover construction, the Designer series by Simpson Electric combines a highly flattened arc with wide case for a clean design. This meter features two extra terminals for the 20-28VDC illumination, and can work with the CA700 compressor, which provides 28V.


Brand Simpson Electric
Series Designer
Model 543
Form Factor 2-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Range 0-1.734VAC
Input Frequency Audio (Cal. at 1kHz)
Scale, Range, or Display VU-A
Accuracy ±3% of Full Scale
Tariff Code 9030.33.0040
Suggested alternatives: Compare
