Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.
This meter is Underwriter Laboratories Recognized.
As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.
Specifications
| Brand | Simpson Electric |
| Model | 29 |
| Series | Rectangular |

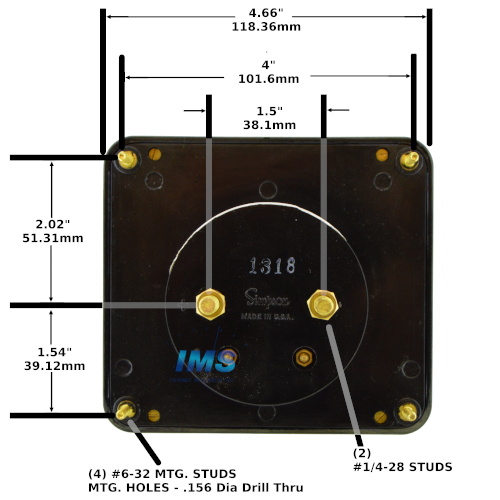

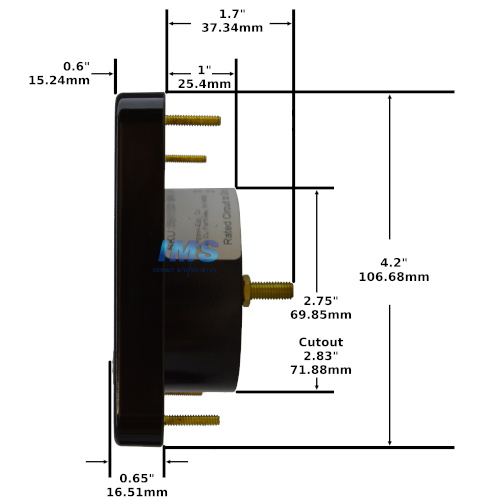

| Form Factor | 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1 |
| Input Frequency | DC |
| Input Range | 0-500µADC |

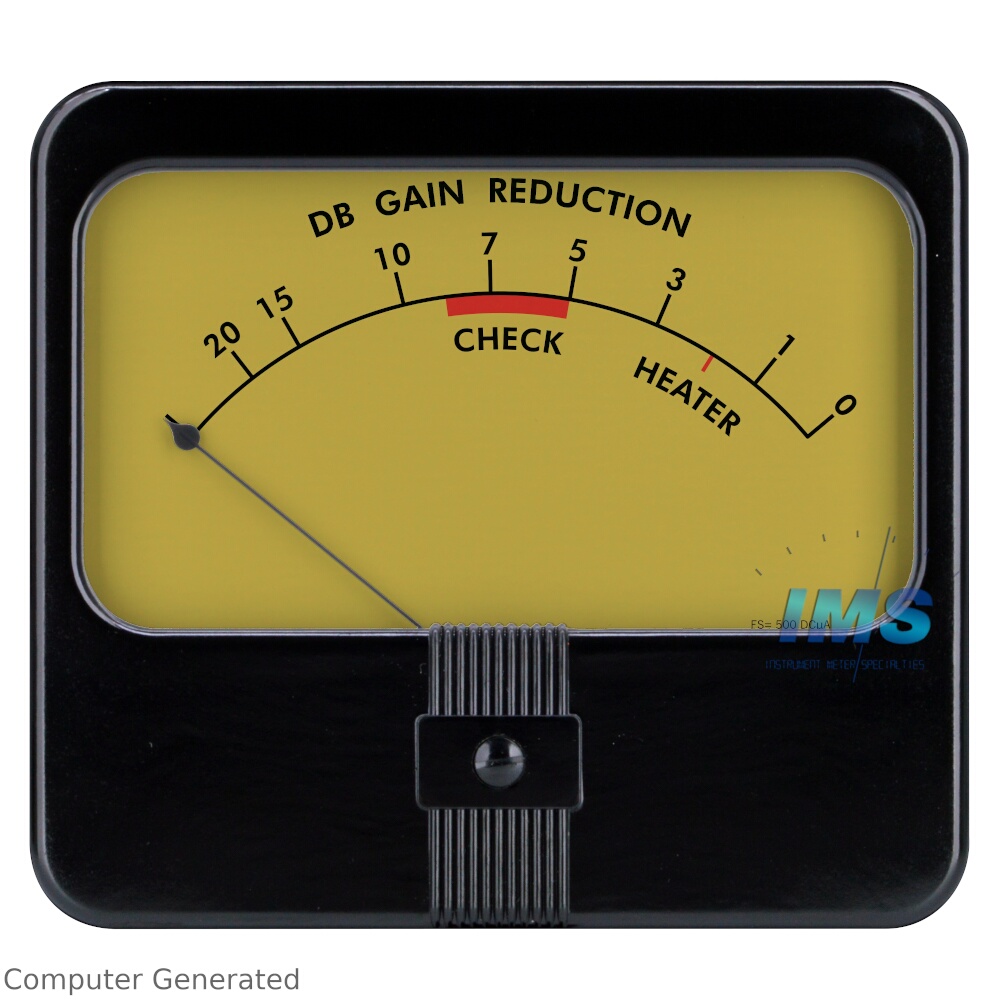

| Scale, Range, or Display | 20-0dB Gain Reduction |
| Accuracy | ±2% of Full Scale |
| Tariff Code | 9030.33.0040 |
| ECCN | EAR99 |
