43074

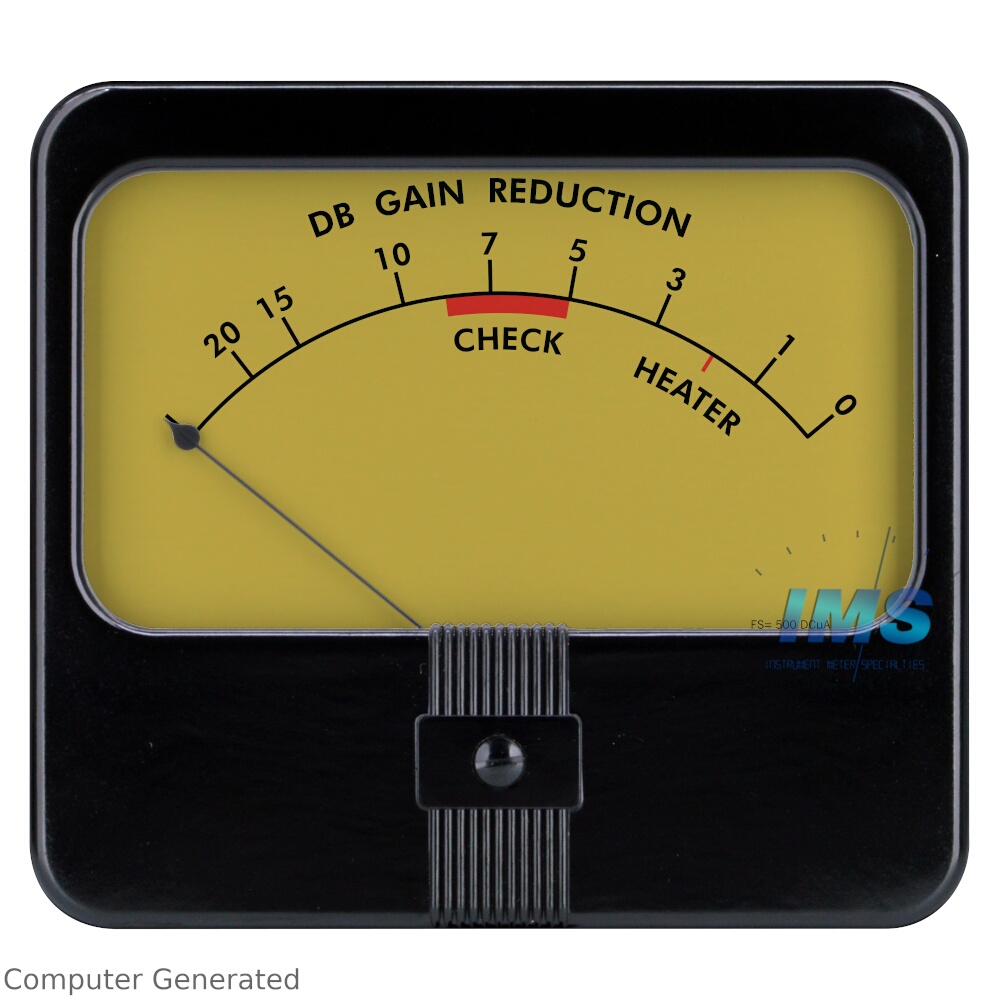

Model 29 0-500uADC Scale 20-0dB Gain Reduction, 6VAC LED Illumination BA6A, 4.5" Rectangular series, Simpson Electric For BA6A Original

197.41 197.41 USD 197.41

197.41

  • Brand
  • Model
  • Series
  • Form Factor
  • Input Frequency
  • Input Range
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.


As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter is Underwriter Laboratories Recognized.


As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Brand Simpson Electric
Model 29
Series Rectangular
Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Frequency DC
Input Range 0-500µADC
Scale, Range, or Display 20-0dB Gain Reduction
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
ECCN EAR99
