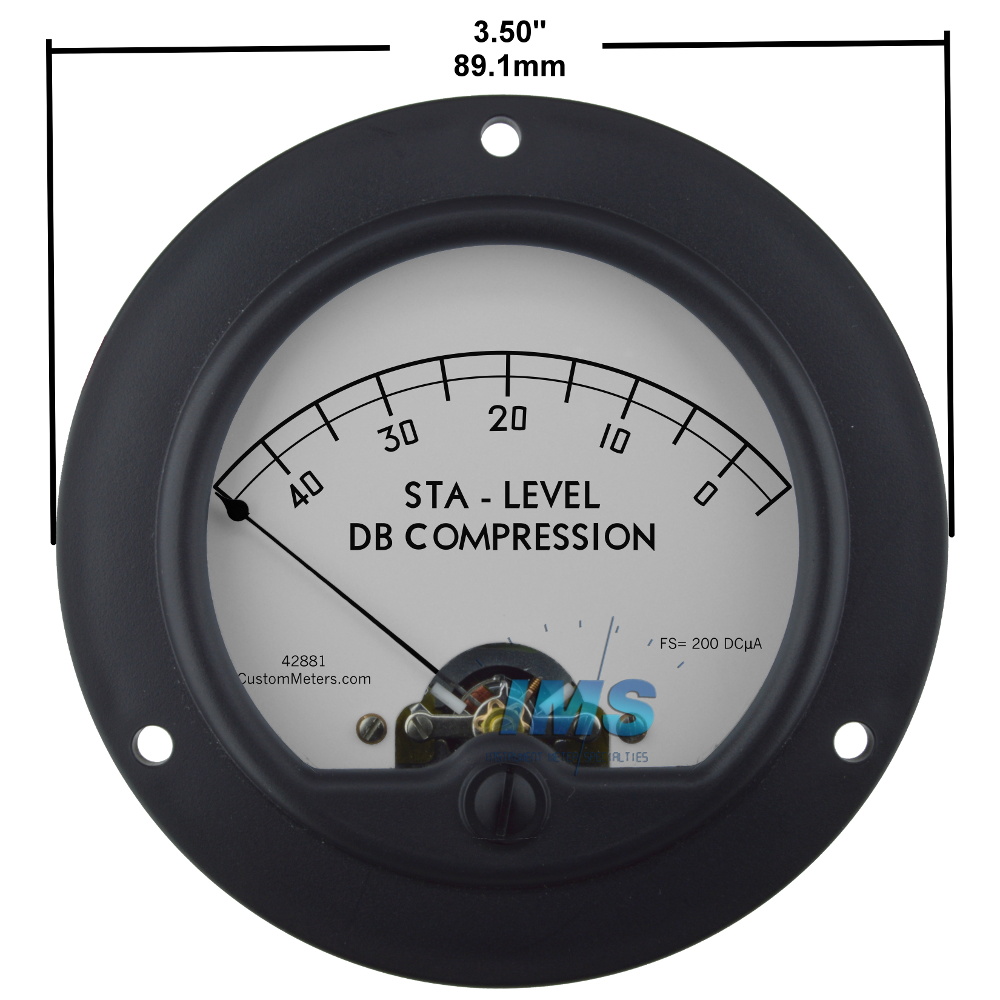

Model 25, 0-200uADC Scale 45-0dB Compression, 6VAC Back Illum., STA Level, 3.5" Round series, Simpson Electric

197.41 197.41 USD 197.41

197.41

  • Brand
  • Model
  • Series
  • Form Factor
  • Input Frequency
  • Input Range
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

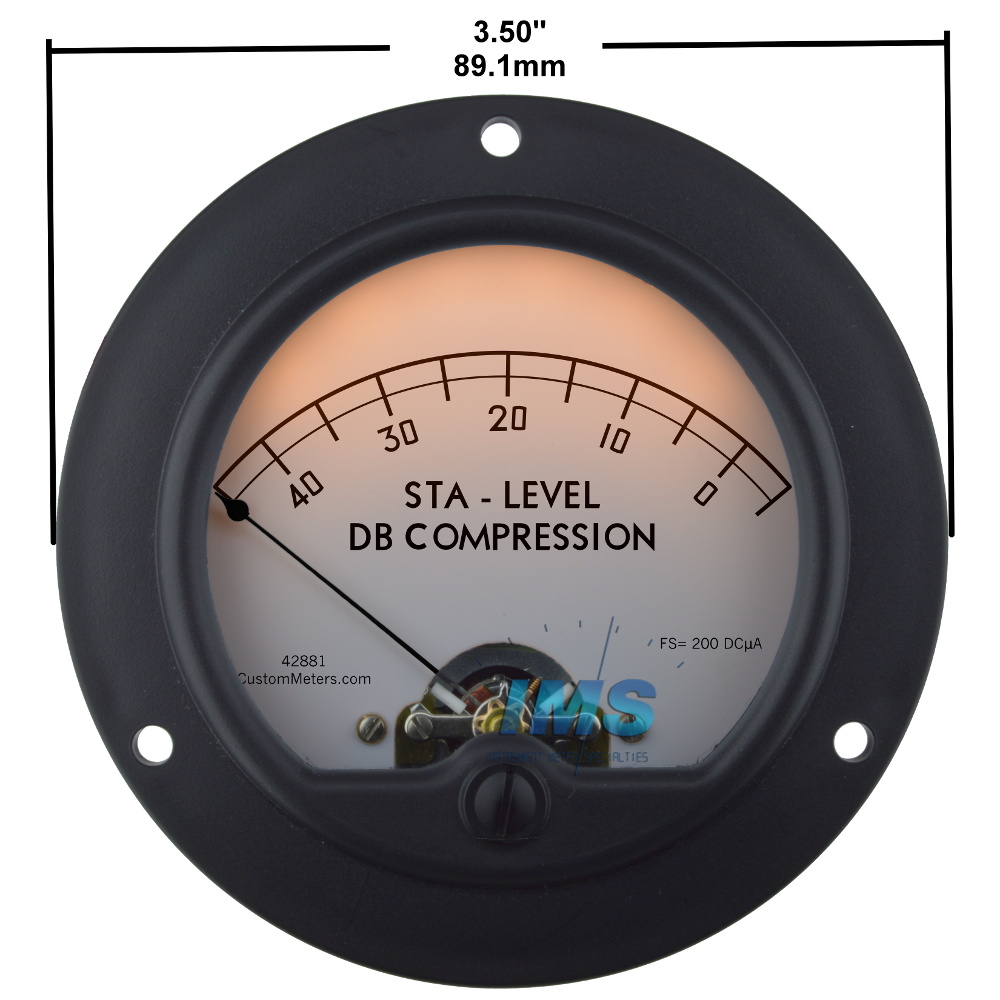

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection.  The cover features a sealed zero corrector for a water-tight design. This meter features 6V AC or DC flicker-free LED illumination. The LEDs draw approximately 60mA at 6V.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. In this case, we designed this meter movement based on old Simpson VU designs to come as close as possible to the original VU ballistic specifications.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Brand Simpson Electric
Model 25
Series Round

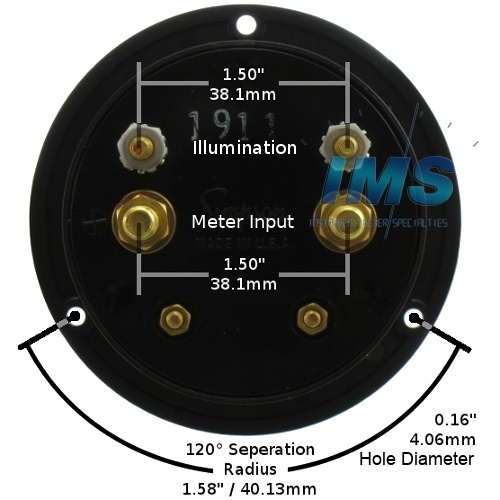

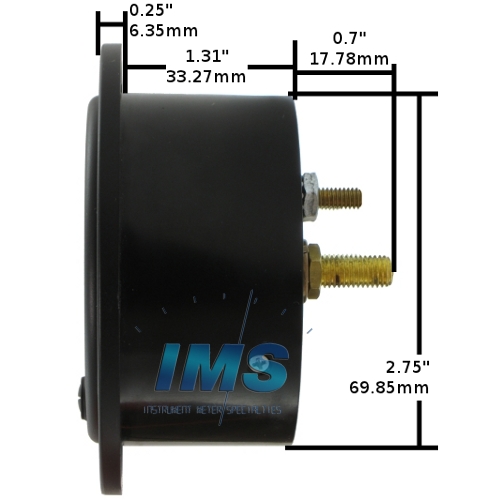

Form Factor 3-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Frequency DC
Input Range 0-200µADC
Scale, Range, or Display 45-0dB Compression
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
ECCN EAR99
