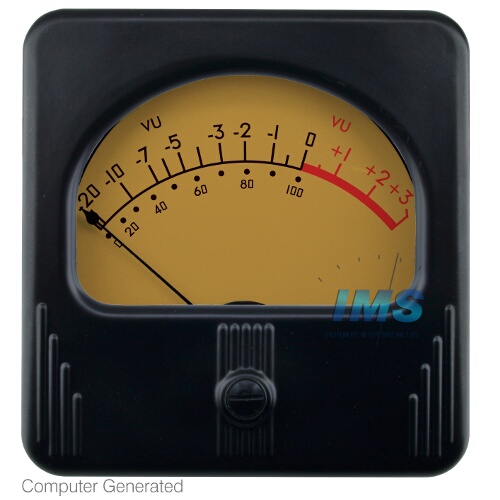

Model 47 0-1.734VAC Scale VU-A, 6VAC Back Illum., Use Ext.3.6K series Resistor, 3.5" Rectangular series, Simpson Electric

223.29 223.29 USD 223.29

223.29

  • Brand
  • Model
  • Series
  • Form Factor
  • Input Frequency
  • Input Range
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • Background Colors
  • Dial Logo Option
  • Dial Monogram Option
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The cover features the original Bakelite construction. This meter features 6V AC or DC flicker-free LED illumination. The LEDs draw approximately 60mA at 6V.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. In this case, we designed this meter movement based on old Simpson VU designs to come as close as possible to the original VU ballistic specifications.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Background Colors Buff Mocha (Standard) or White or Buff Light
Dial Logo Option No Logo (Standard) or ? Logo on Dial
Dial Monogram Option No Monogram (Standard) or Simpson
Brand Simpson Electric
Model 47
Series Rectangular
Form Factor 4-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Frequency Audio (Cal. at 1kHz)
Input Range 0-1.734VAC
Scale, Range, or Display VU-A
Accuracy ±3% of Full Scale
Tariff Code 9030.33.0040
ECCN EAR99
