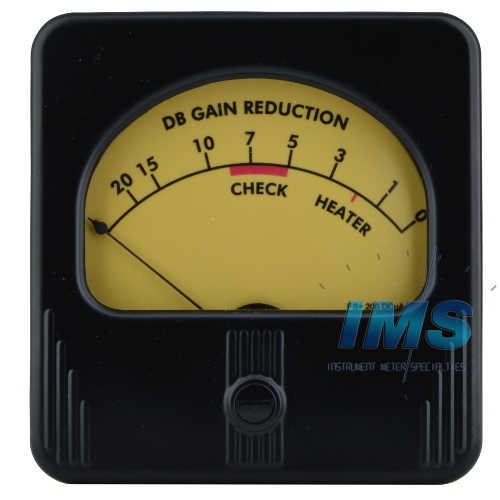

Model 27 0-200uADC Scale 20-0dB Gain Reduction, 6VAC Back Illuminated, BA6A Meter, 3.5" Rectangular series, Simpson Electric

193.95 193.95000000000002 USD 193.95

193.95

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

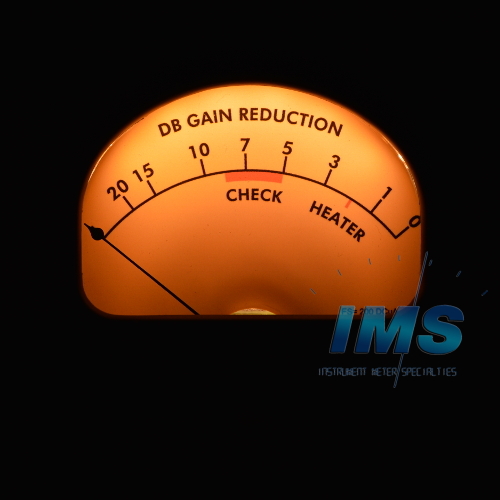

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The cover features the original Bakelite construction. This meter features 6V AC or DC flicker-free LED illumination. The LEDs draw approximately 60mA at 6V.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. In this case, we designed this meter movement based on old Simpson VU designs to come as close as possible to the original VU ballistic specifications.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.

Specifications

Brand Simpson Electric
Series Rectangular
Model 27
Form Factor 4-Stud Mount, Panel: 3.5-Inch ANSI C39.1
Input Range 0-200µADC
Input Frequency DC
Scale, Range, or Display 20-0dB Gain Reduction
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
ECCN EAR99
