41843
Model 29 0-100uADC Scale 0-100%, 4.5" Rectangular series, Simpson Electric
Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.
As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized,
As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.
Specifications
Brand | Simpson Electric |
Series | Rectangular |
Model | 29 |

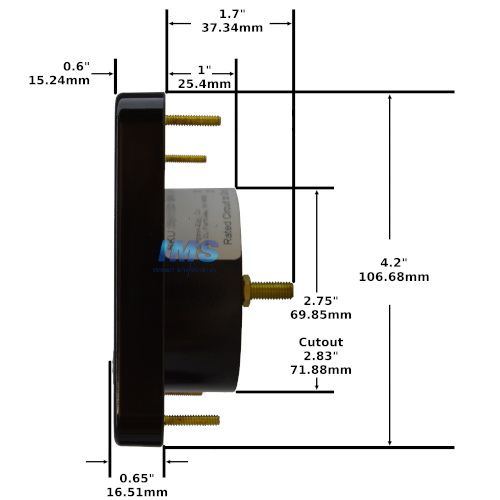

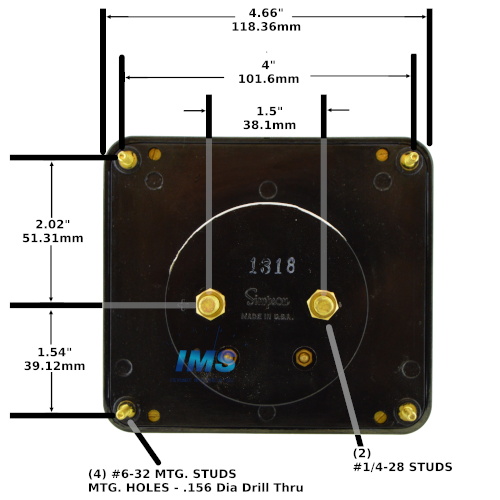

Form Factor | 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1 |
Input Range | 0-100µADC |
Input Frequency | DC |
Scale, Range, or Display | 0-100% |
Accuracy | ±2% of Full Scale |
Tariff Code | 9030.33.0040 |
ECCN | EAR99 |
