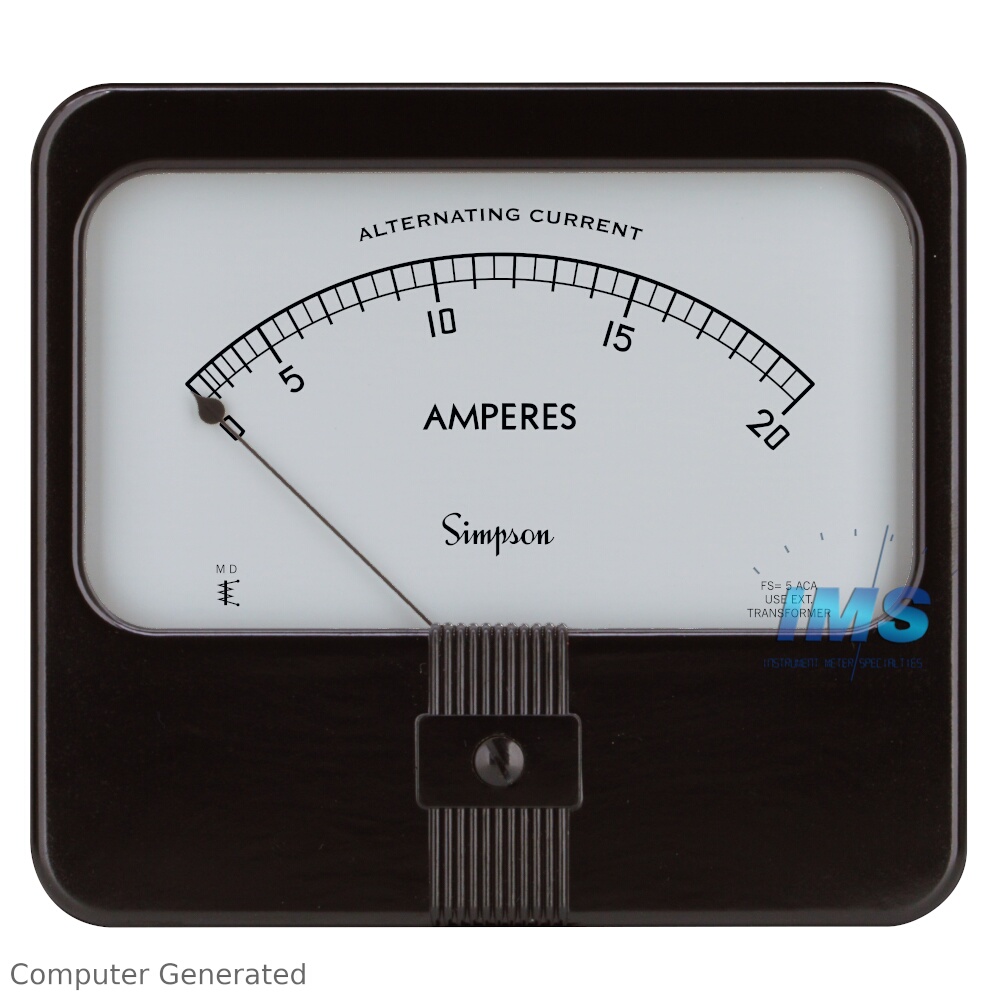

Model 59 0-5AAC Scale 0-20AAC, 4.5" Wide Vue series, Simpson Electric

148.46 148.46 USD 148.46


  • Brand
  • Series
  • Model
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN
  • CT Ratio

This combination does not exist.

As a Simpson Authorized Modification and Repair Center, we keep the lead time short by stocking unfinished meters and completing final modifications and calibration in our laboratory. This meter, when produced this way, is not Underwriter Laboratories Recognized. If you require the instrument to be Underwriter Laboratories Recognized, Please specify and we will order you the finished meter from Simpson.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.


Brand Simpson Electric
Series Rectangular
Model 59
Input Range 0-5AAC
Input Frequency 60Hz
Scale, Range, or Display 0-20AAC
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
Current Transformers
CT Ratio 20:5A
