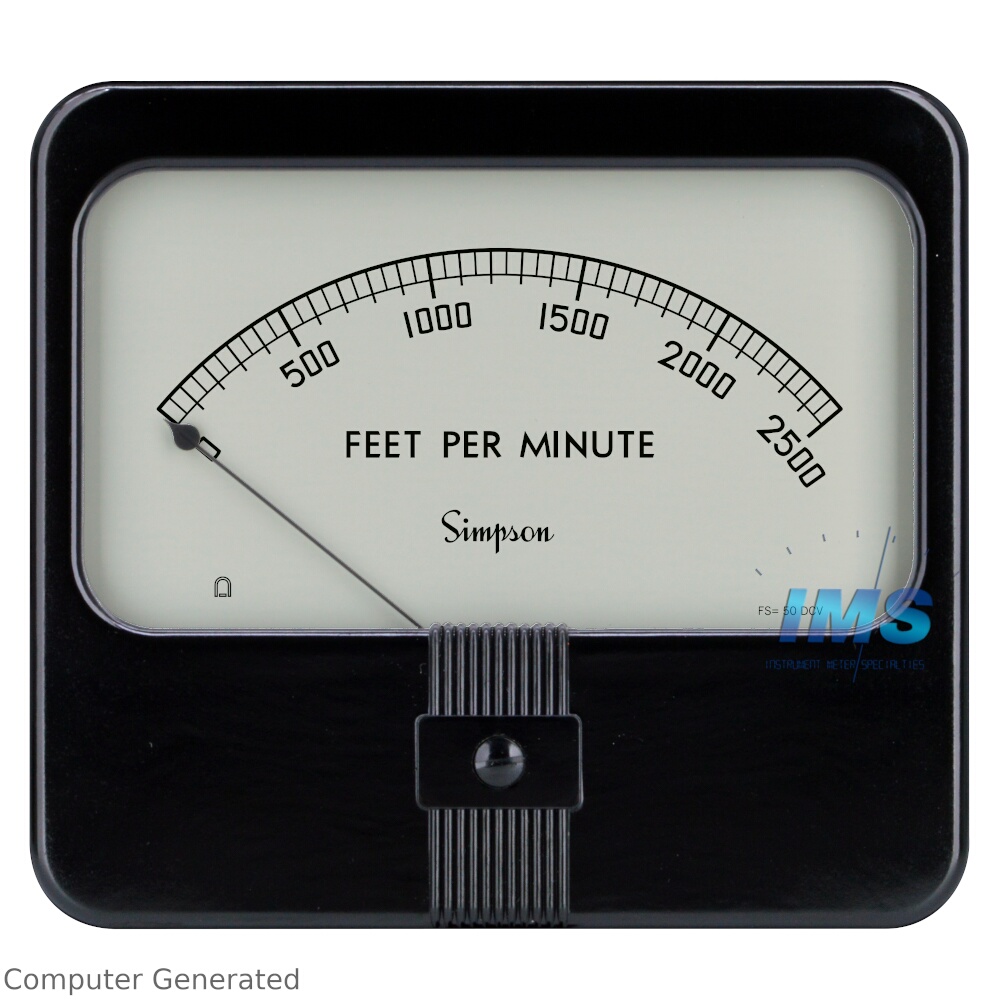

Model 29 0-50VDC Scale 0-2500FPM, 4.5" Rectangular series, Simpson Electric

150.18 150.18 USD 150.18


  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Scale, Range, or Display
  • Accuracy
  • Tariff Code
  • ECCN

This combination does not exist.

Made with a self-shielding Annular d'Arsonval movement, this meter can be installed in steel panels without requiring recalibration. The Pivot and Jewel suspension is spring-loaded for shock protection. The case and cover feature the original Bakelite construction.

This meter is not Underwriter Laboratories Recognized.

As an Authorized Simpson Modification Center, we can offer custom upgrades, such custom artworks and adding logos to dial artworks.


Brand Simpson Electric
Series Rectangular
Model 29

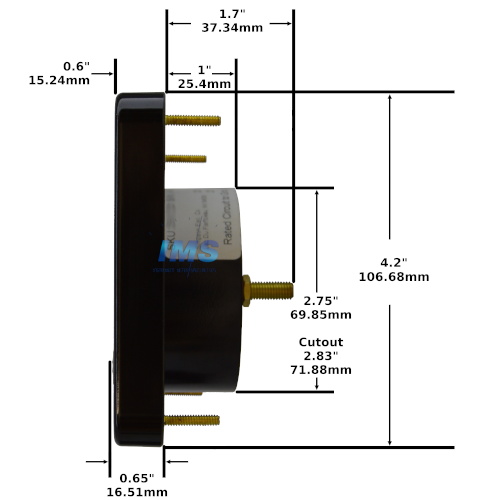

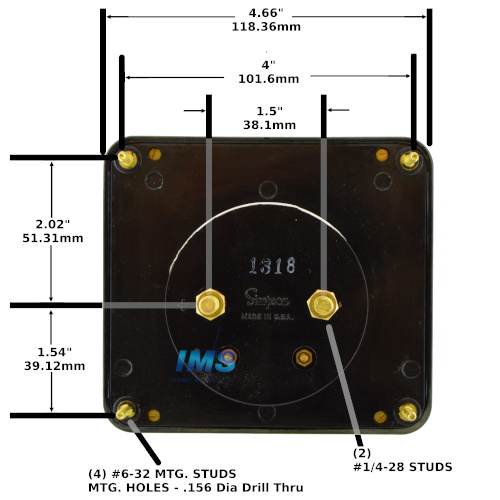

Form Factor 4-Stud Mount, Panel: 4.5-Inch ANSI C39.1
Input Range 0-50VDC
Input Frequency DC
Scale, Range, or Display 0-2500FPM
Accuracy ±2% of Full Scale
Tariff Code 9030.33.0040
