Application
- 3 phase relay, metering and motor overload protection.
Frequency
- 50-400 Hz.
Insulation Level
- 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
Approximate weight 4 lbs.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 3P84 |
| Input Range | 0-200AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 1.2 B0.1, 1.2 B0.2, 2.4 B0.5, 4.8 B0.9 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.0VA |
| CT Ratio | 200:5A |
| CT Secondary Winding Resistance | 0.070Ω (70mΩ) @ 75°C |

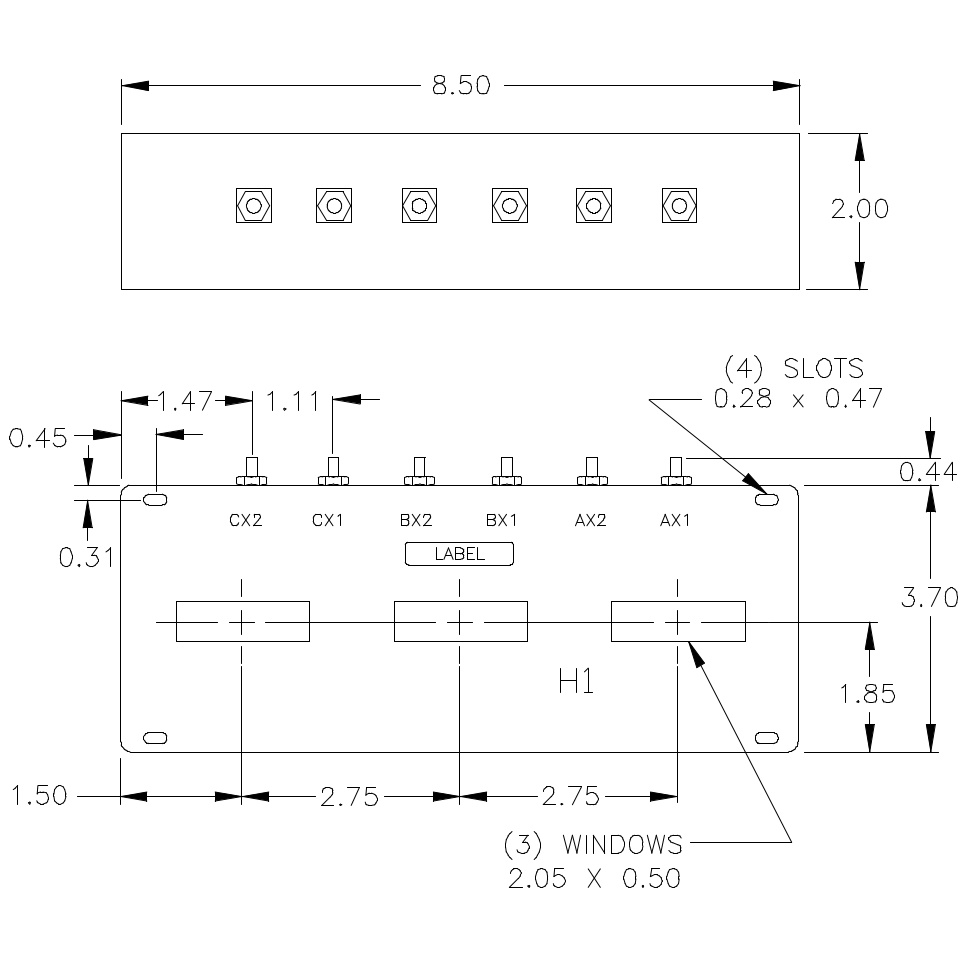

| CT Window | 2.05" x 0.50" |
