3P82-301 ITI

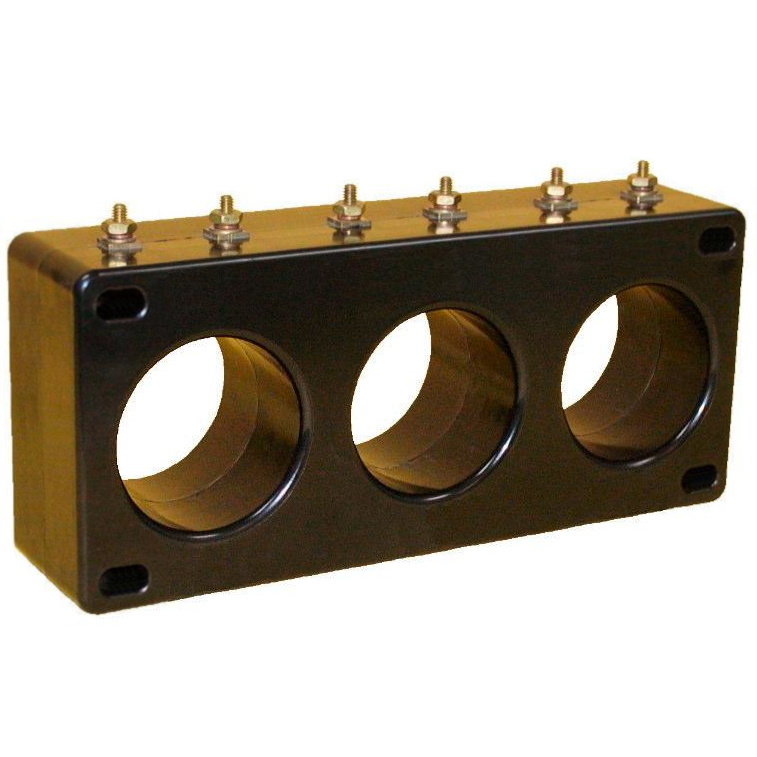

Model 3P3 300:5A Ratio CT, 2VA, 2" Window, ITI

410.24 410.24 USD 410.24

410.24

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Window
  • CT Secondary Winding Resistance
  • Burden VA Max.
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

Application

  • 3 phase relay, metering and motor overload protection.

Frequency

  • 50-400 Hz.

Insulation Level

  • 600 Volts, 10 kV BIL full wave.

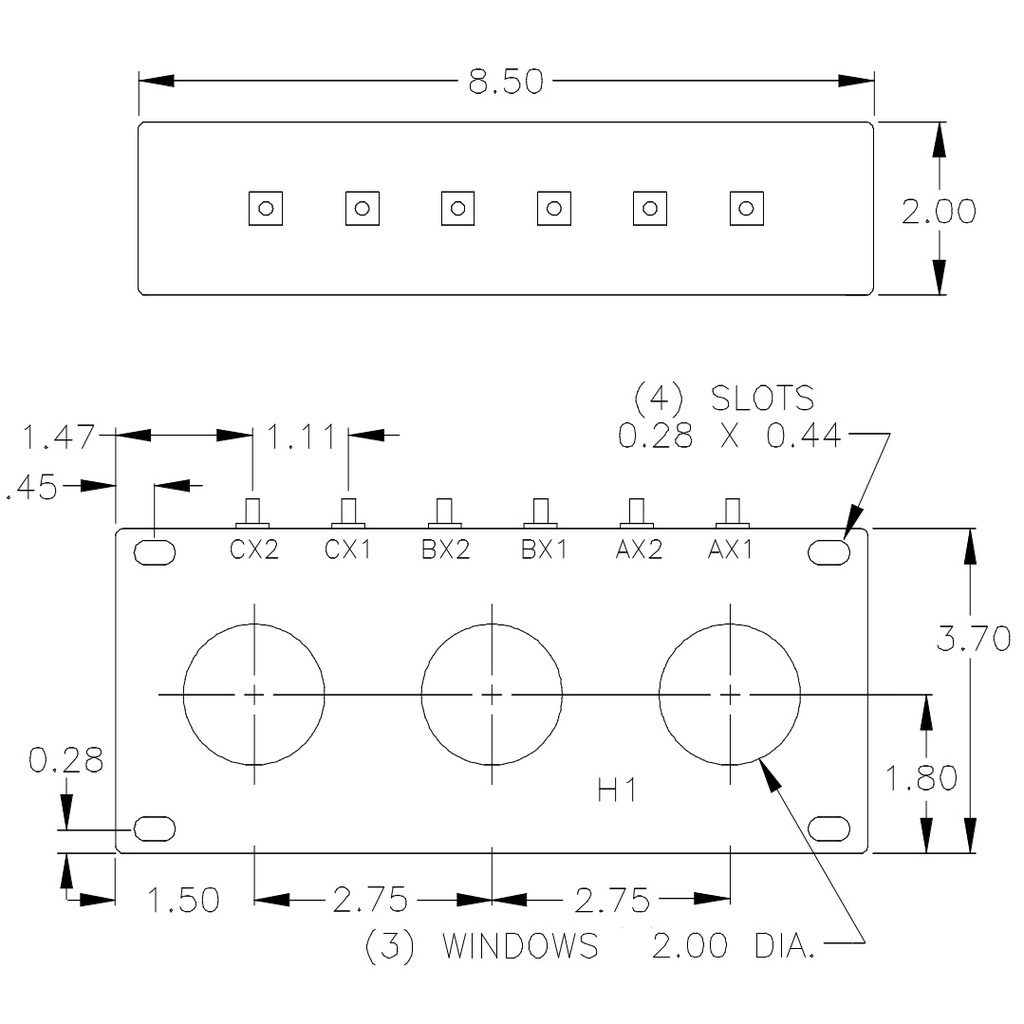

Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.

Approximate weight 4 lbs.

Specifications

Brand Instrument Transformers Inc
Model 3P82
Input Range 0-300AAC
Input Frequency 60Hz
Accuracy 1% Class, 2.4 B0.1, 2.4 B0.2, 4.8 B0.5
Output 0-5AAC
CT Ratio 300:5A
CT Window 2.00" Diameter
CT Secondary Winding Resistance 0.106Ω (106mΩ) @ 75°C
Burden VA Max. 2.0VA
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
