Application: 3 phase metering.
Frequency: 50-400 Hz.
Insulation Level: 600 Volts, 10 kV BIL full wave.

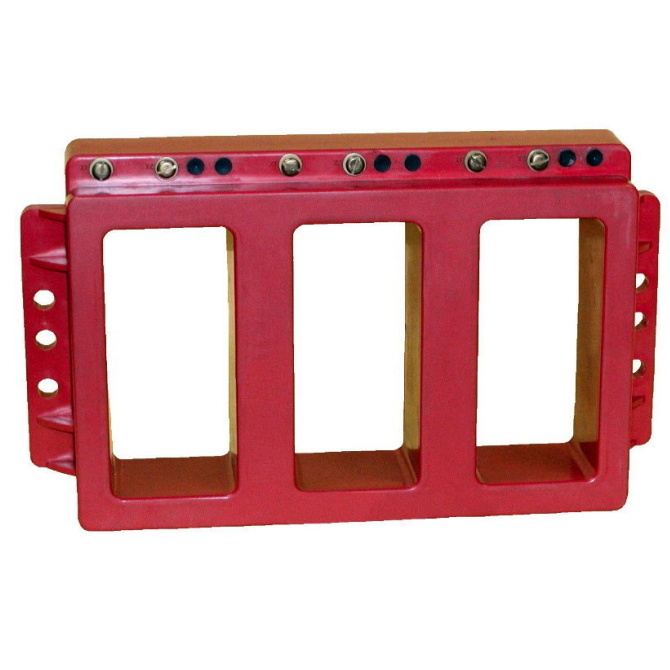

The core and coil assembly is encased in a thermoplastic shell and filled with resin.
Terminals are brass screws No. 10-32 with one flatwasher.
Approximate weight 12 lbs.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 3P528 |
| Input Range | 0-600AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 B0.2, 0.3 B0.1, 0.6 B0.5, 0.6 B0.9, 1.2 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Ratio | 600:5A |
| CT Secondary Winding Resistance | 0.125Ω (125mΩ) @ 75°C |

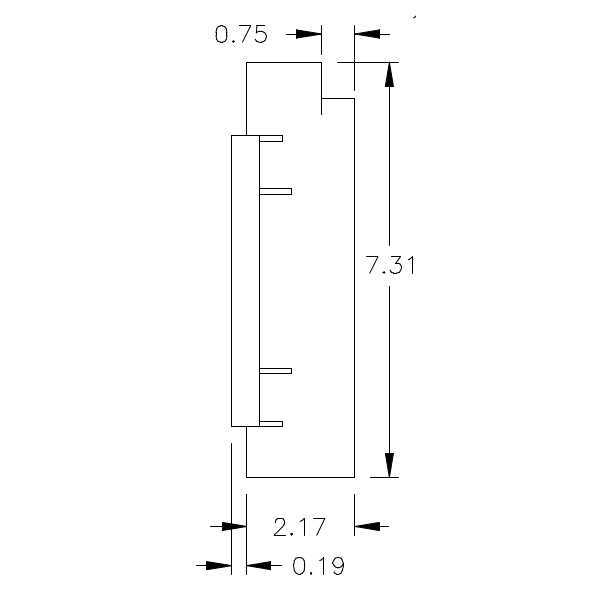

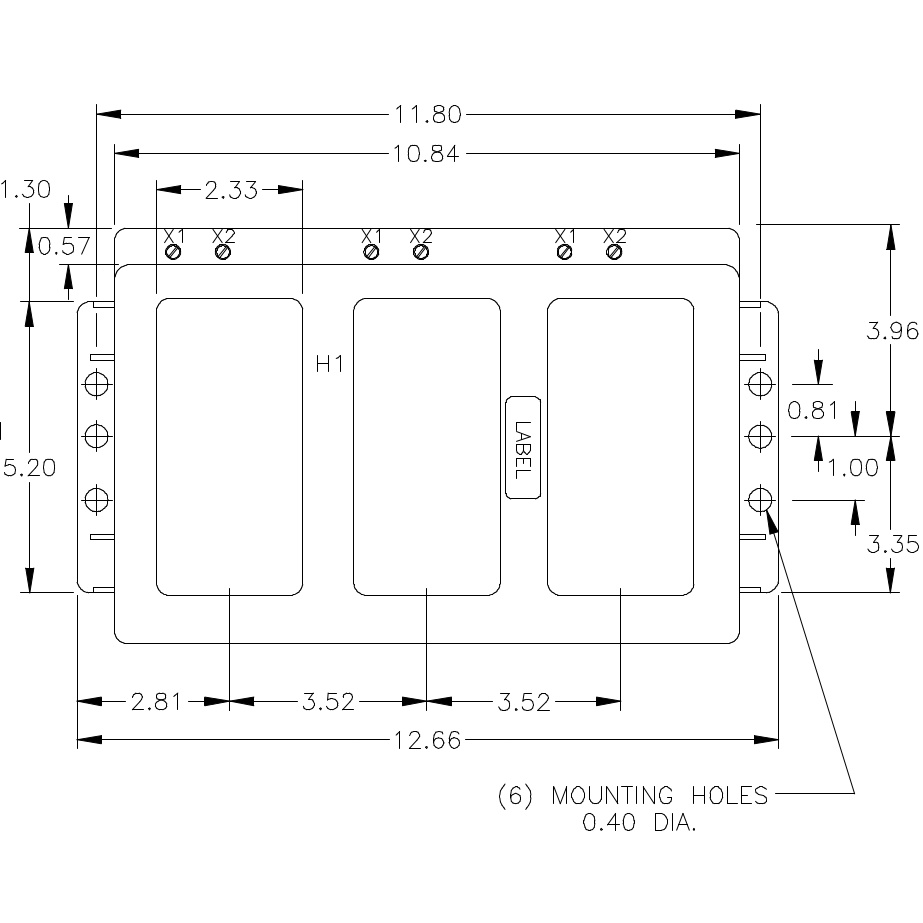

| CT Window | 2.33 x 5.20" |
