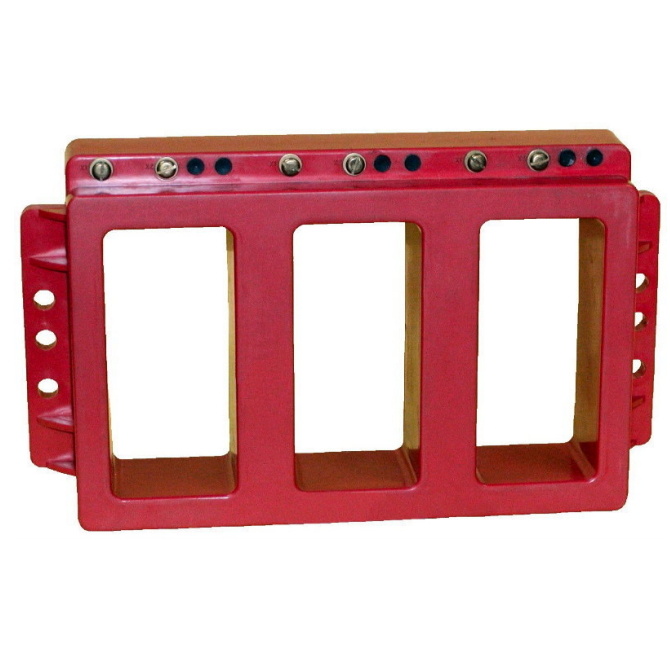

3P528-301 ITI

Model 3P528 300:5A Ratio 3-Phase CT, 2.33" x 5.20" Window, ITI

1,548.25 1548.25 USD 1,548.25

1,548.25

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Window
  • CT Secondary Winding Resistance
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

Application: 3 phase metering.
Frequency: 50-400 Hz.
Insulation Level: 600 Volts, 10 kV BIL full wave.
The core and coil assembly is encased in a thermoplastic shell and filled with resin.
Terminals are brass screws No. 10-32 with one flatwasher.
Approximate weight 12 lbs.

Specifications

Brand Instrument Transformers Inc
Model 3P528
Input Range 0-300AAC
Input Frequency 60Hz
Accuracy 0.6 B0.1, 0.6 B0.2, 2.4 B0.5, 2.4 B0.9
Output 0-5AAC
CT Ratio 300:5A
CT Window 2.33 x 5.20"
CT Secondary Winding Resistance 0.062Ω (62mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
