3P528-122 ITI

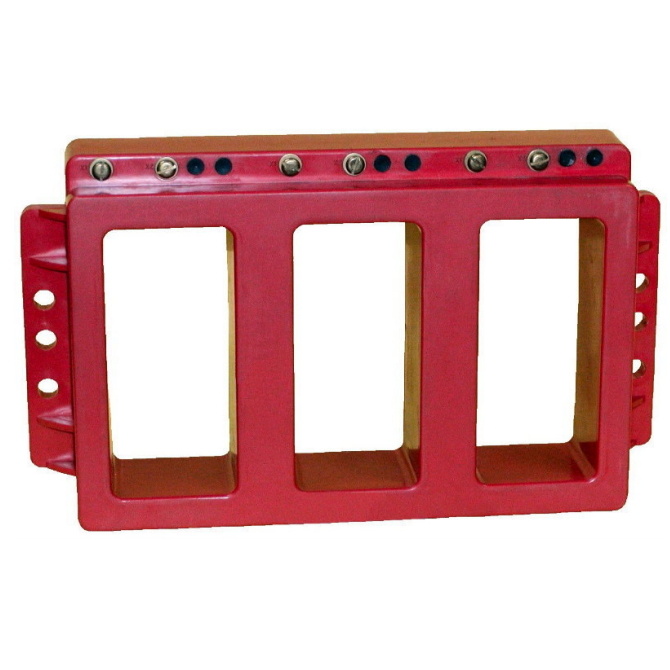

Model 3P528 1200:5A Ratio 3-Phase CT, 2.33" x 5.20" Window, ITI
Application: 3 phase metering.
Frequency: 50-400 Hz.
Insulation Level: 600 Volts, 10 kV BIL full wave.
The core and coil assembly is encased in a thermoplastic shell and filled with resin.
Terminals are brass screws No. 10-32 with one flatwasher.
Approximate weight 12 lbs.
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 3P528 |
Input Range | 0-1200AAC |
Input Frequency | 60Hz |
Accuracy | 0.3 B0.5, 0.3 B0.1, 0.3 B0.2, 0.3 B0.9, 0.6 B1.8 |
Output | 0-5AAC |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Ratio | 1,200:5A |
CT Secondary Winding Resistance | 0.313Ω (313mΩ) @ 75°C |

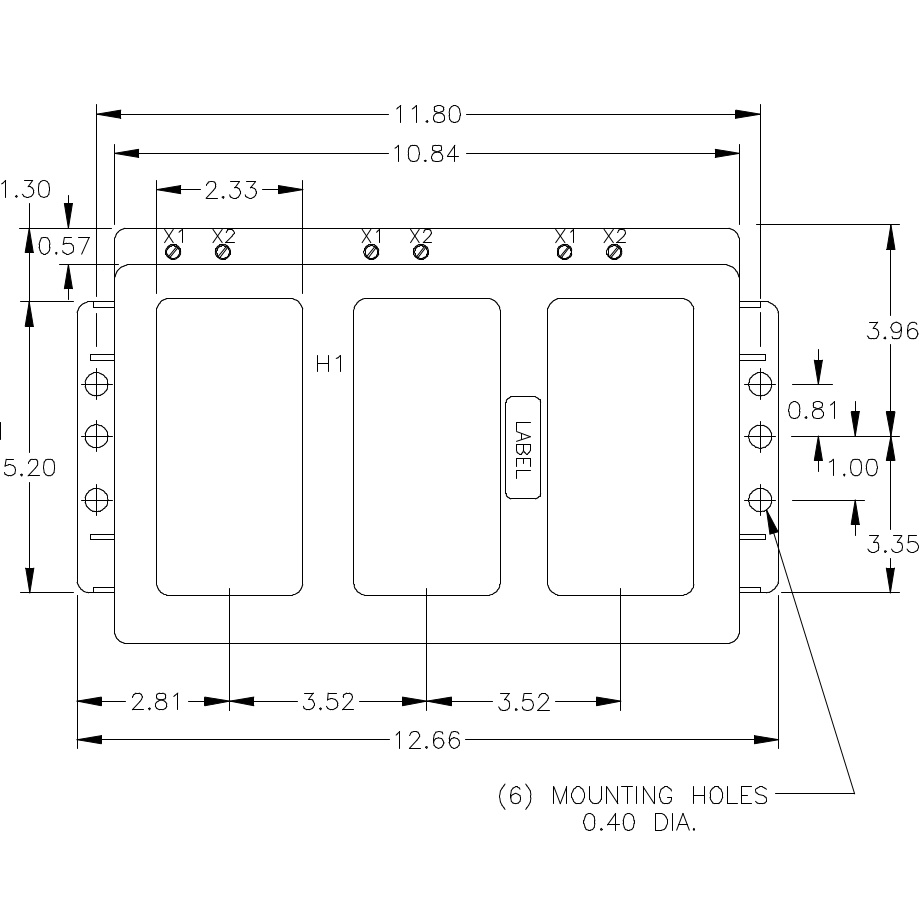

CT Window | 2.33 x 5.20" |
